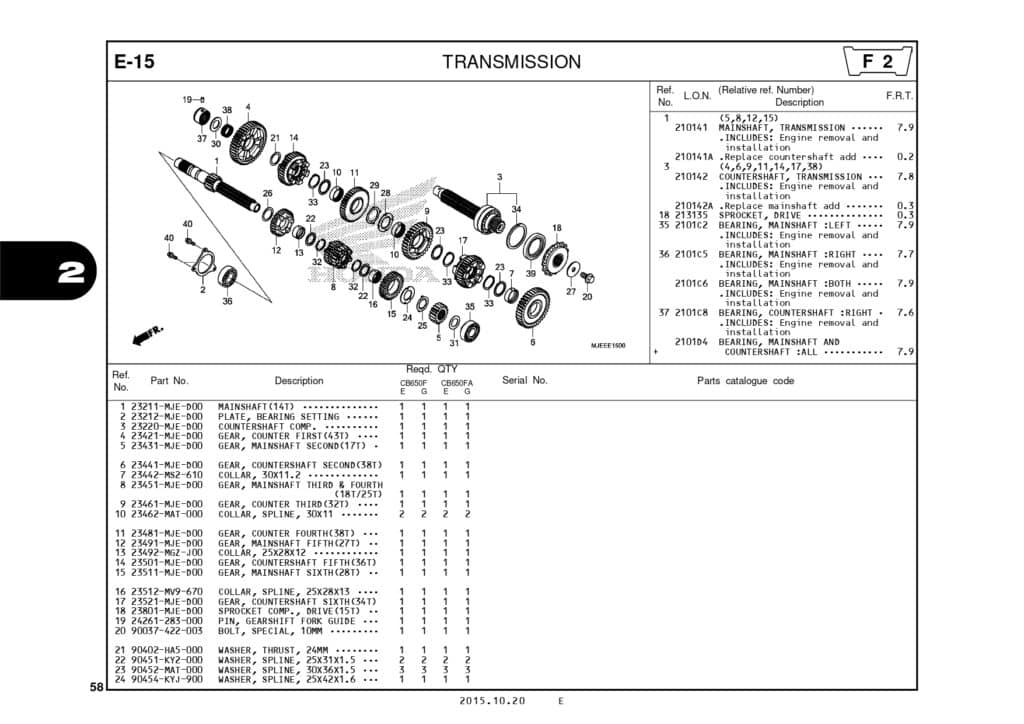

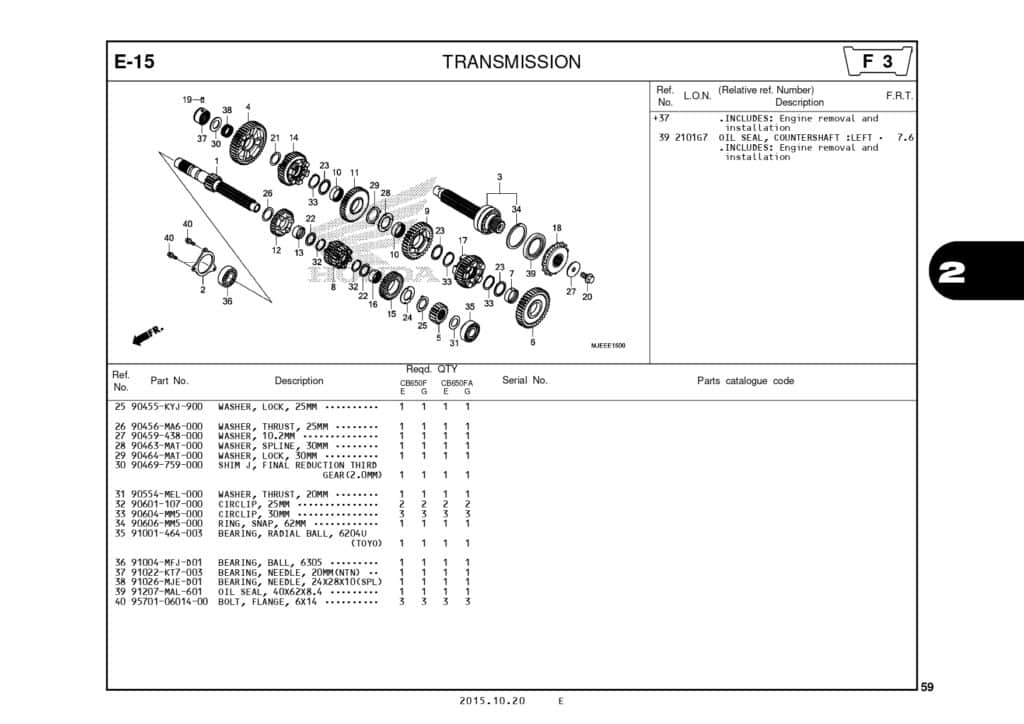

E-15 Transmission – Katalog Honda CB650F

#

Gambar

Nama Part

Harga

Order

1

MAINSHAFT(14T)
23211MJED00

2

PLATE, BEARING SETTING
23212MJED00

3

COUNTERSHAFT COMP.
23220MJED00

4

GEAR, COUNTER FIRST(43T)
23421MJED00

5

GEAR, MAINSHAFT SECOND(17T)
23431MJED00

6

GEAR, COUNTERSHAFT SECOND(38T)
23441MJED00

7

COLLAR, 30X11.2
23442MS2610

8

GEAR, MAINSHAFT THIRD & FOURTH
23451MJED00

9

GEAR, COUNTER THIRD(32T)
23461MJED00

10

COLLAR, SPLINE, 30X11
23462MAT000

11

GEAR, COUNTER FOURTH(38T)
23481MJED00

12

GEAR, MAINSHAFT FIFTH(27T)
23491MJED00

13

23492MCZJ00
23492MCZJ00

14

GEAR, COUNTERSHAFT FIFTH(36T)
23501MJED00

15

GEAR, MAINSHAFT SIXTH(28T)
23511MJED00

16

COLLAR, SPLINE, 25X28X13
23512MV9670

17

GEAR, COUNTERSHAFT SIXTH(34T)
23521MJED00

18

SPROCKET COMP., DRIVE(15T)
23801MJED00

19

PIN, GEARSHIFT FORK GUIDE
24261283000stok habis

Rp 42,000

stok habis

20

BOLT, SPECIAL, 10MM
90037422003stok habis

Rp 55,000

stok habis

21

WASHER, THRUST, 24MM
90402HA5000

22

WASHER, SPLINE, 25X31X1.5
90451KY2000

23

WASHER, SPLINE, 30X36X1.5
90452MAT000

24

WASHER,SPLINE 25X42X1.6
90454KYJ900stok 2

Rp 18,000

Tambah

Barang ini telah ditambahkan ke keranjang anda.

25

WASHER,LOCK 25MM
90455KYJ900stok 6

Rp 30,000

Tambah

Barang ini telah ditambahkan ke keranjang anda.

26

WASHER, THRUST, 25MM
90456MA6000

27

WASHER, 10.2MM
90459438000stok 1

Rp 34,500

Tambah

Barang ini telah ditambahkan ke keranjang anda.

28

WASHER, SPLINE, 30MM
90463MAT000

29

WASHER, LOCK, 30MM
90464MAT000

30

SHIM J, FINAL REDUCTION THIRD
90469759000

31

WASHER, THRUST, 20MM
90554MEL000

32

CIRCLIP.25MM
90601107000

33

CIRCLIP, 30MM
90604MM5000

34

RING, SNAP, 62MM
90606MM5000

35

BEARING, RADIAL BALL, 6204U
91001464003

36

BEARING, BALL, 6305
91004MFJD01

37

BEARING, NEEDLE, 20MM(NTN) LBL
91022KT7003

38

BEARING, NEEDLE, 24X28X10(SPL)
91026MJED01

39

OIL SEAL, 40X62X8.4
91207MAL601

40

BOLT FLANGE 6X14
957010601400stok 60

Rp 1,500

Tambah

Barang ini telah ditambahkan ke keranjang anda.

Berapa Harga Suku Cadang Di Katalog Ini ?

Anda bisa mencatat kode suku cadang yang anda inginkan diatas lalu cari harganya di halaman harga suku cadang motor Honda. Harga tertera disana adalah harga resmi suku cadang motor Honda untuk Indonesia.
