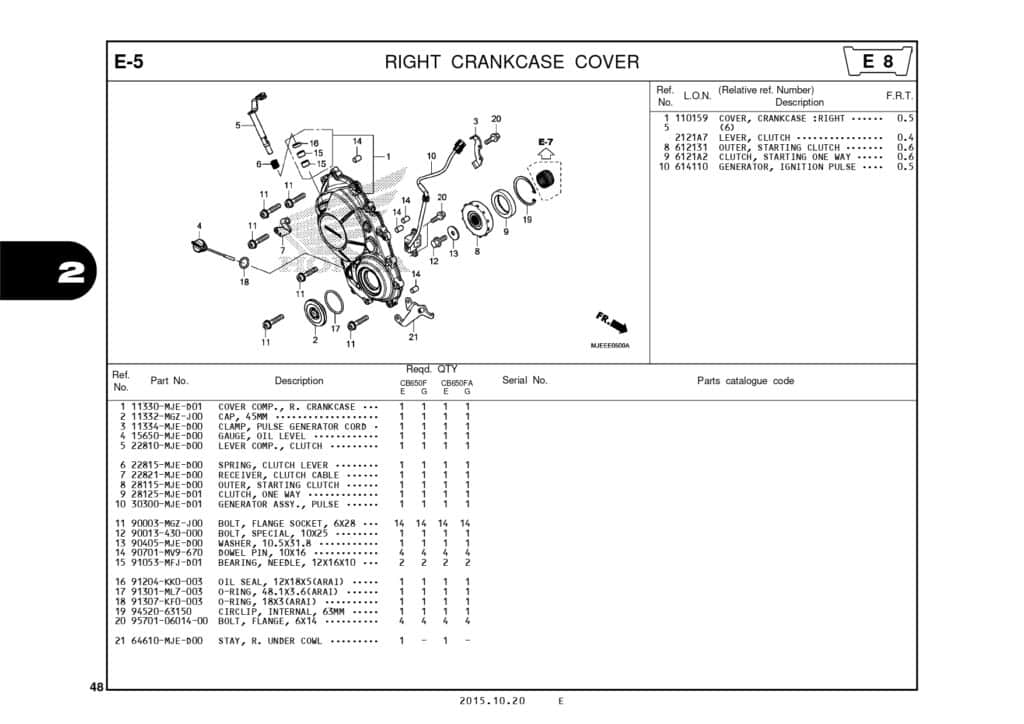

E-5 Right Crankcase Cover – Katalog Honda CB650F

#

Gambar

Nama Part

Harga

Order

1

COVER COMP., R. CRANKCASE
11330MJED01

2

11332MCZJ00
11332MCZJ00

3

CLAMP, PULSE GENERATOR CORD
11334MJED00

4

GAUGE, OIL LEVEL
15650MJED00

5

LEVER COMP., CLUTCH
22810MJED00

6

SPRING, CLUTCH LEVER
22815MJED00

7

RECEIVER, CLUTCH CABLE
22821MJED00

8

OUTER, STARTING CLUTCH
28115MJED00

9

CLUTCH, ONE WAY
28125MJED01

10

GENERATOR ASSY., PULSE
30300MJED01

11

90003MCZJ00
90003MCZJ00

12

BOLT, SPECIAL, 10X25
90013430000stok 1

Rp 48,500

Tambah

Barang ini telah ditambahkan ke keranjang anda.

13

WASHER, 10.5X31.8
90405MJED00

14

DOWEL PIN, 10X16
90701MV9670

15

BEARING, NEEDLE, 12X16X10 LBL
91053MFJD01stok habis

Rp 49,000

stok habis

16

OILSL,12X18X5
91204KK0003

17

O-RING, 48.1X3.6(ARAI)
91301ML7003

18

O-RING, 18X3(ARAI)
91307KF0003stok habis

Rp 22,500

stok habis

19

CIRCLIP, INTERNAL, 63MM
9452063150

20

BOLT FLANGE 6X14
957010601400stok 195

Rp 1,500

Tambah

Barang ini telah ditambahkan ke keranjang anda.

21

STAY, R. UNDER COWL
64610MJED00

Berapa Harga Suku Cadang Di Katalog Ini ?

Anda bisa mencatat kode suku cadang yang anda inginkan diatas lalu cari harganya di halaman harga suku cadang motor Honda. Harga tertera disana adalah harga resmi suku cadang motor Honda untuk Indonesia.
