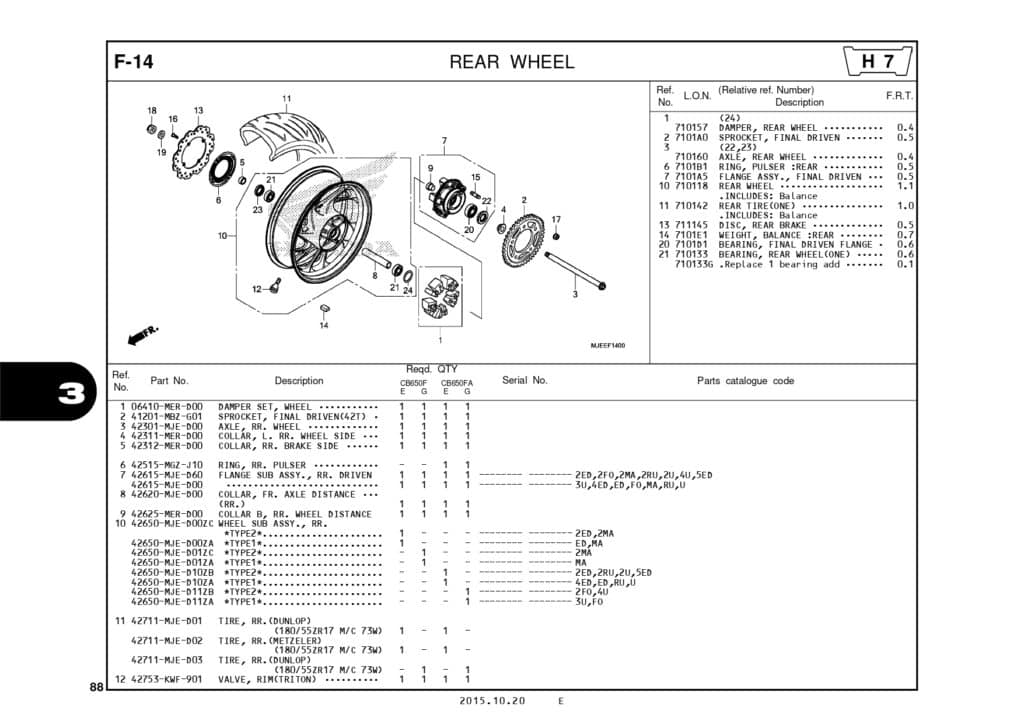

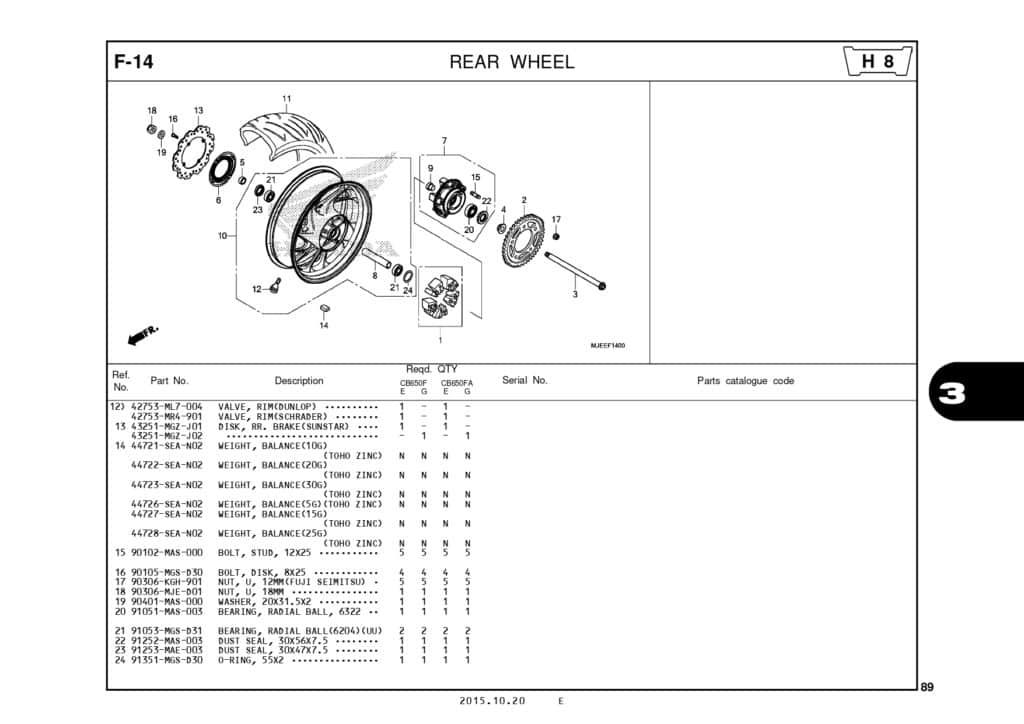

F-14 Rear Wheel – Katalog Honda CB650F

#

Gambar

Nama Part

Harga

Order

1

DAMPER SET, WHEEL
06410MERD00

2

41201MBZC01
41201MBZC01

3

AXLE, RR. WHEEL
42301MJED00

4

COLLAR, L. RR. WHEEL SIDE
42311MERD00

5

COLLAR, RR. BRAKE SIDE
42312MERD00

6

42515MCZJ10
42515MCZJ10

7

FLANGE SUB ASSY., RR. DRIVEN
42615MJED60

7

FLANGE SUB ASSY., RR. DRIVEN
42615MJED00

8

COLLAR, FR. AXLE DISTANCE (RR.)
42620MJED00

9

COLLAR B, RR. WHEEL DISTANCE
42625MERD00

10

42650MJED00ZC
42650MJED00ZC

10

42650MJED00ZA
42650MJED00ZA

10

42650MJED01ZC
42650MJED01ZC

10

42650MJED01ZA
42650MJED01ZA

10

42650MJED10ZB
42650MJED10ZB

10

42650MJED10ZA
42650MJED10ZA

10

42650MJED11ZB
42650MJED11ZB

10

WHEEL SUB ASSY,RR PRSNPB1
42650MJED11ZA

11

42711MJED01
42711MJED01

11

42711MJED02
42711MJED02

11

TIRE RR(DUN)180/55ZR17-D222M
42711MJED03

12

42753KWF901
42753KWF901 stok 158

Rp 10,500

Tambah

Barang ini telah ditambahkan ke keranjang anda.

12

42753ML7004
42753ML7004

12

42753KWF901
42753MR4901

13

43251MCZJ01
43251MCZJ01

13

43251MCZJ02
43251MCZJ02

14

WEIGHT, BALANCE(10G)
44721SEAN02

14

WEIGHT, BALANCE(20G)
44722SEAN02

14

WEIGHT, BALANCE(30G)
44723SEAN02

14

WEIGHT, BALANCE(5G)(TOHO ZINC)
44726SEAN02

14

WEIGHT, BALANCE(15G)
44727SEAN02

14

WEIGHT, BALANCE(25G)
44728SEAN02

15

BOLT, STUD, 12X25
90102MAS000

16

90105MCSD30
90105MCSD30

17

90306KCH901
90306KCH901

18

NUT, U, 18MM
90306MJED01

19

WASHER, 20X31.5X2
90401MAS000

20

BEARING, RADIAL BALL, 6322
91051MAS003

21

91053MCSD31
91053MCSD31

22

DUST SEAL, 30X56X7.5
91252MAS003

23

DUST SEAL, 30X47X7.5
91253MAE003

24

91351MCSD30
91351MCSD30

Berapa Harga Suku Cadang Di Katalog Ini ?

Anda bisa mencatat kode suku cadang yang anda inginkan diatas lalu cari harganya di halaman harga suku cadang motor Honda. Harga tertera disana adalah harga resmi suku cadang motor Honda untuk Indonesia.
