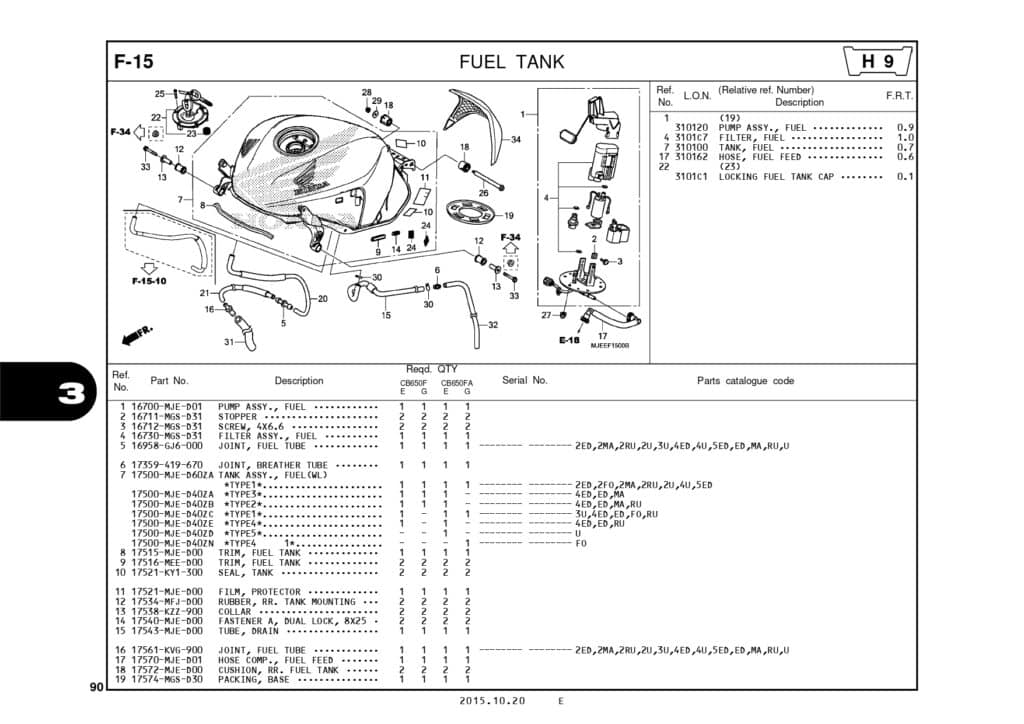

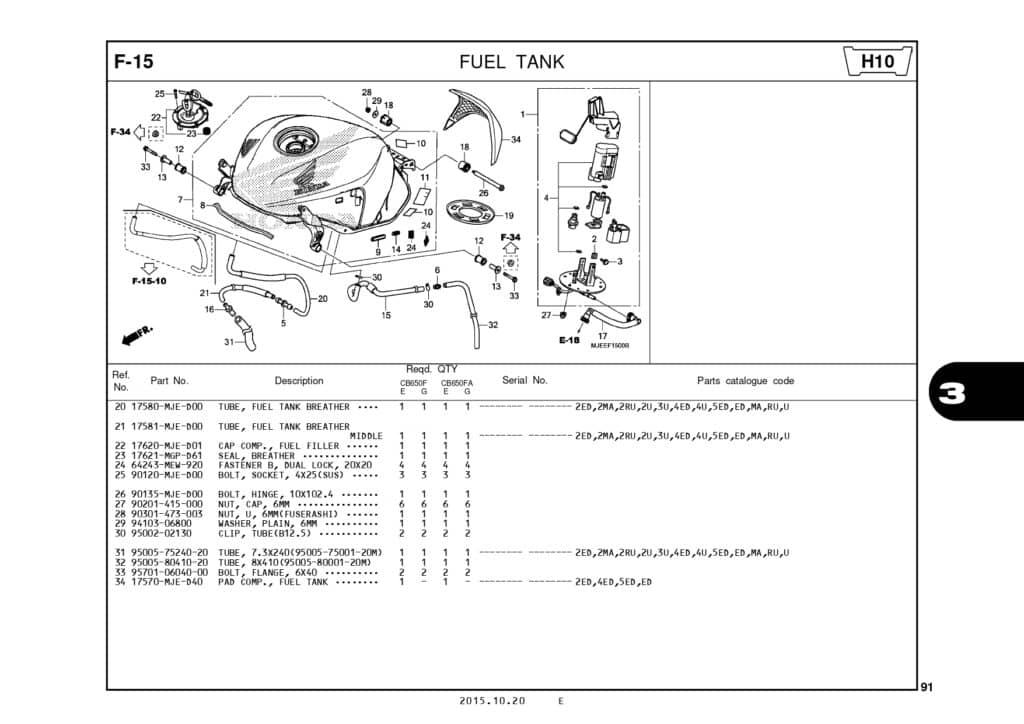

F-15 Fuel Tank – Katalog Honda CB650F

#

Gambar

Nama Part

Harga

Order

1

PUMP ASSY., FUEL
16700MJED01

2

16711MCSD31
16711MCSD31

3

16712MCSD31
16712MCSD31

4

16730MCSD31
16730MCSD31

5

16958CJ6000
16958CJ6000

6

JOINT, BREATHER TUBE
17359419670

7

17500MJED60ZA
17500MJED60ZA

7

17500MJED40ZA
17500MJED40ZA

7

17500MJED40ZB
17500MJED40ZB

7

TANK ASSY., FUEL (BLK)
17500MJED40ZC

7

TANK ASSY., FUEL (YELLOW)
17500MJED40ZE

7

17500MJED40ZD
17500MJED40ZD

7

17500MJED40ZN
17500MJED40ZN

8

TRIM, FUEL TANK
17515MJED00

9

TRIM, FUEL TANK
17516MEED00

10

SEAL, TANK
17521KY1300

11

FILM, PROTECTOR
17521MJED00

12

RUBBER, RR. TANK MOUNTING
17534MFJD00

13

COLLAR
17538KZZ900

14

FASTENER A, DUAL LOCK, 8X25
17540MJED00

15

TUBE, DRAIN
17543MJED00

16

17561KVC900
17561KVC900

17

HOSE COMP., FUEL FEED
17570MJED01

18

CUSHION, RR. FUEL TANK
17572MJED00

19

17574MCSD30
17574MCSD30

20

17580MJED00
17580MJED00

21

TUBE, FUEL TANK BREATHER
17581MJED00

22

CAP COMP., FUEL FILLER
17620MJED01

23

17621MCPD61
17621MCPD61

24

FASTENER B, DUAL LOCK, 20X20
64243MEw920

25

BOLT, SOCKET, 4X25(SUS)
90120MJED00

26

BOLT, HINGE, 10X102.4
90135MJED00

27

NUT,CAP 6MM
90201415000

28

NUT U 6MM
90301473003stok 7

Rp 26,000

Tambah

Barang ini telah ditambahkan ke keranjang anda.

29

WASHER, PLAIN, 6MM
9410306800stok 41

Rp 5,000

Tambah

Barang ini telah ditambahkan ke keranjang anda.

30

CLIP, TUBE(B12.5)
9500202130stok habis

Rp 2,000

stok habis

31

TUBE, 7.3X240(95005-75001-20M)
950057524020

32

TUBE, 8X410(95005-80001-20M)
950058041020

33

BOLT FLANGE 6X40
957010604000stok habis

Rp 1,500

stok habis

34

PAD COMP., FUEL TANK
17570MJED40

Berapa Harga Suku Cadang Di Katalog Ini ?

Anda bisa mencatat kode suku cadang yang anda inginkan diatas lalu cari harganya di halaman harga suku cadang motor Honda. Harga tertera disana adalah harga resmi suku cadang motor Honda untuk Indonesia.
