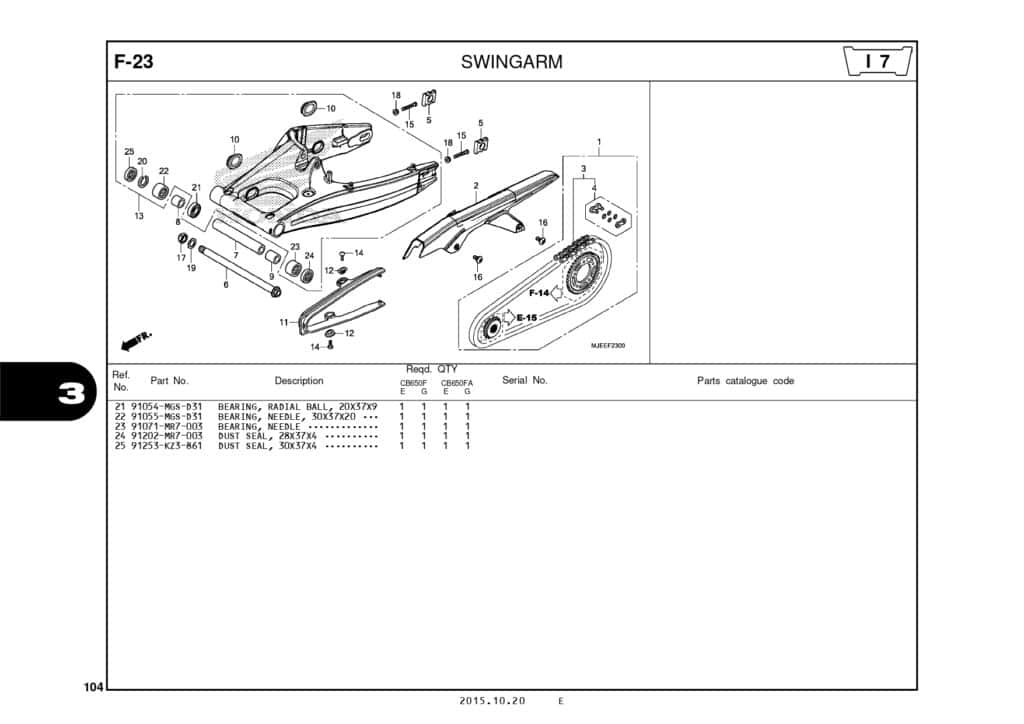

F-23 Swingarm – Katalog Honda CB650F

#

Gambar

Nama Part

Harga

Order

1

06406MJED00
06406MJED00

2

CASE, DRIVE CHAIN
40511MJED00

3

CHAIN, DRIVE(DID525V11-120ZB)
40540MJED01

3

CHAIN, DRIVE(RK525KRW-120LJFZ)(STANDARD
40540MJED02

4

JOINT, DRIVE CHAIN(DAIDO)
40545MJED01

4

JOINT, DRIVE CHAIN(RK)
40545MJED02

5

COLLAR, RR. AXLE
42305MJED00

6

BOLT, SWINGARM PIVOT
52101MJED00

7

COLLAR, CENTER PIVOT DISTANCE
52141MJED00

8

COLLAR, R. PIVOT DISTANCE
52142MJED00

9

COLLAR, L. PIVOT DISTANCE
52143MJED00

10

CAP, RR. SWINGARM
52161KZZ900

11

SLIDER, CHAIN
52170MJED00

12

WASH.CHN.SLDR.
52171KR6000stok habis

Rp 23,000

stok habis

13

SWINGARM SUB ASSY., RR.
52200MJED00

14

SCREW PAN,5X16
90104KPP900stok 82

Rp 5,000

Tambah

Barang ini telah ditambahkan ke keranjang anda.

15

BOLT, HEX., 8X50
90106MCFD00

16

90115MCZJ00
90115MCZJ00

17

NUT, U, 18MM
90305MJED01

18

NUT HEX 8MM
90309357000stok 69

Rp 27,000

Tambah

Barang ini telah ditambahkan ke keranjang anda.

19

WASHER, 18X32X2
90401KZ4890

20

CIRCLIP, INTERNAL(37)
90651MEW920

21

91054MCSD31
91054MCSD31

22

91055MCSD31
91055MCSD31

23

BEARING, NEEDLE LBL
91071MR7003

24

DUST SEAL, 28X37X4
91202MR7003

25

DUST SEAL, 30X37X4
91253KZ3861

Berapa Harga Suku Cadang Di Katalog Ini ?

Anda bisa mencatat kode suku cadang yang anda inginkan diatas lalu cari harganya di halaman harga suku cadang motor Honda. Harga tertera disana adalah harga resmi suku cadang motor Honda untuk Indonesia.
