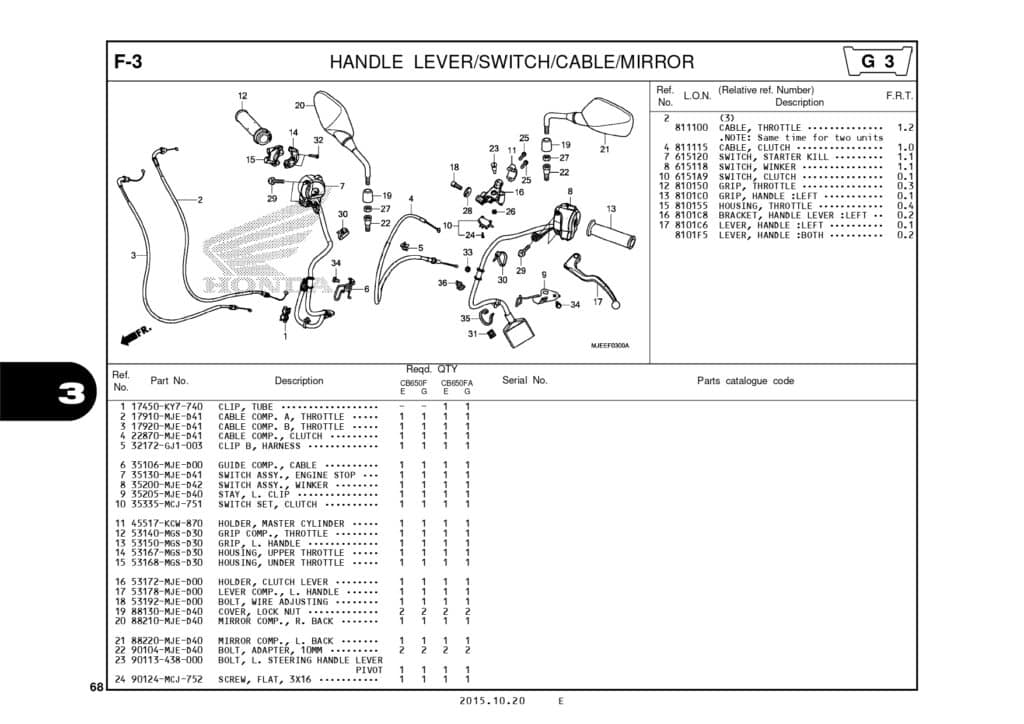

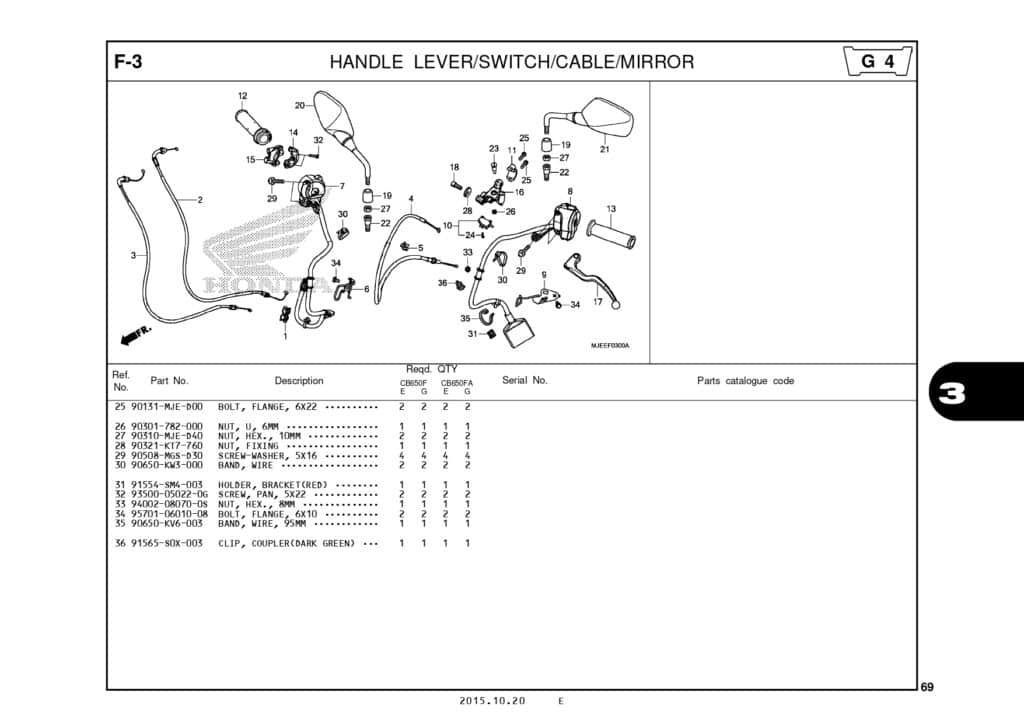

F-3 Handle Lever Switch Cable Mirror – Katalog Honda CB650F

#

Gambar

Nama Part

Harga

Order

1

CLIP, TUBE
17450KY7740

2

CABLE COMP. A, THROTTLE
17910MJED41

3

CABLE COMP. B, THROTTLE
17920MJED41

4

CABLE COMP., CLUTCH
22870MJED41

5

32172CJ1003
32172CJ1003

6

GUIDE COMP., CABLE
35106MJED00

7

SWITCH ASSY., ENGINE STOP
35130MJED41

8

SWITCH ASSY., WINKER(MINDA)
35200MJED42

9

STAY, L. CLIP
35205MJED40

10

SWITCH SET, CLUTCH
35335MCJ751

11

HOLDER,M/C
45517KCW870

12

53140MCSD30
53140MCSD30

13

53150MCSD30
53150MCSD30

14

53167MCSD30
53167MCSD30

15

53168MCSD30
53168MCSD30

16

HOLDER, CLUTCH LEVER
53172MJED00

17

LEVER COMP., L. HANDLE
53178MJED00

18

BOLT, WIRE ADJUSTING
53192MJED00

19

COVER, LOCK NUT
88130MJED40

20

MIRROR COMP., R. BACK
88210MJED40

21

MIRROR COMP., L. BACK
88220MJED40

22

BOLT, ADAPTER, 10MM
90104MJED40

23

BOLT L HDL
90113438000stok 73

Rp 18,000

Tambah

Barang ini telah ditambahkan ke keranjang anda.

24

SCREW, FLAT, 3X16
90124MCJ752

25

BOLT, FLANGE, 6X22
90131MJED00

26

NUT, U, 6MM
90301782000

27

NUT, HEX., 10MM
90310MJED40

28

NUT, FIXING
90321KT7760

29

90508MCSD30
90508MCSD30

30

BAND, WIRE
90650KW3000

31

HOLDER, BRACKET(RED)
91554SM4003

32

93500050220C
93500050220C

33

NUT, HEX., 8MM
94002080700S

34

BOLT FLANGE 6X10
957010601008stok 87

Rp 2,500

Tambah

Barang ini telah ditambahkan ke keranjang anda.

35

BAND,WIRE
90650KV6003stok habis

Rp 26,500

stok habis

36

CLIP, COUPLER(DARK GREEN)
91565S0X003stok 5

Rp 28,500

Tambah

Barang ini telah ditambahkan ke keranjang anda.

Berapa Harga Suku Cadang Di Katalog Ini ?

Anda bisa mencatat kode suku cadang yang anda inginkan diatas lalu cari harganya di halaman harga suku cadang motor Honda. Harga tertera disana adalah harga resmi suku cadang motor Honda untuk Indonesia.
