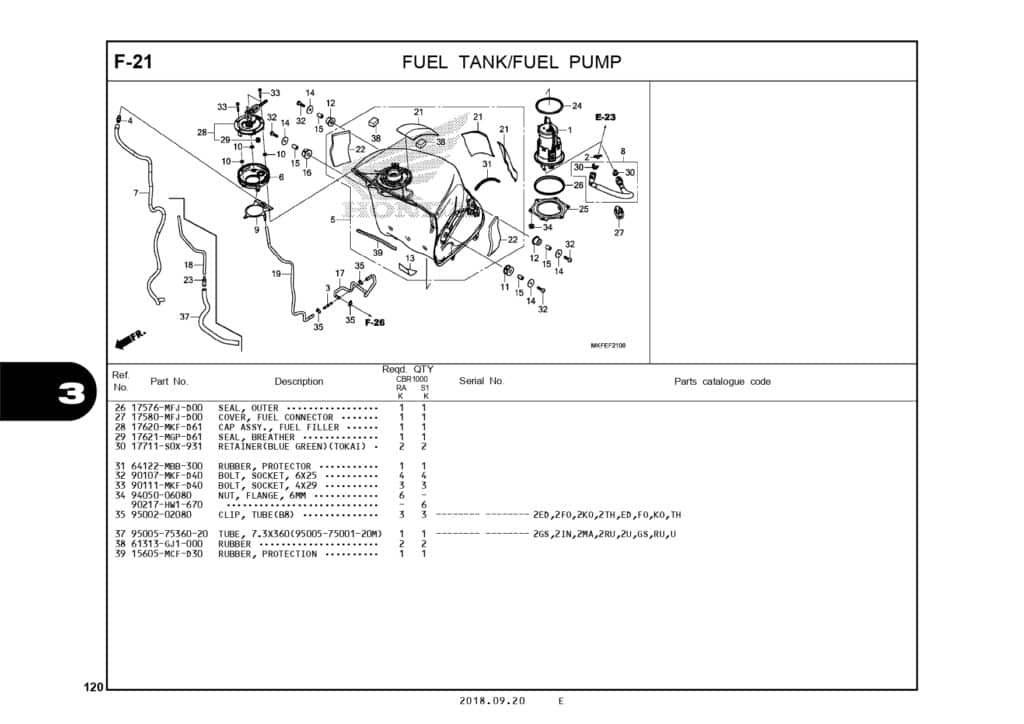

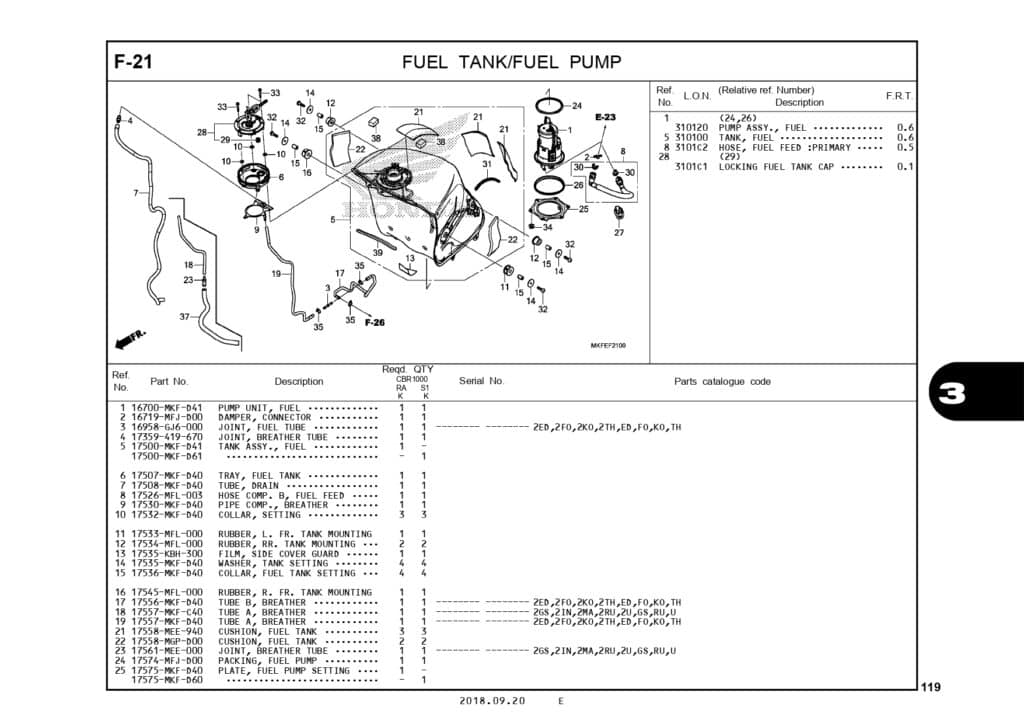

F-21 Fuel Tank Fuel Pump – Katalog Honda CBR1000RA/S1

#

Gambar

Nama Part

Harga

Order

1

UNIT ASSY FUEL PUR LBL
16700MKFD41

2

DAMPER,CONNECTOR
16719MFJD00

3

JOINT, FUEL TUBE
16958GJ6000

4

JOINT, BREATHER TUBE
17359419670

5

TANK ASSY FUEL
17500MKFD41

5

TANK ASSY FUEL
17500MKFD61

6

TRAY FUEL TANK
17507MKFD40

7

TUBE DRAIN
17508MKFD40

8

HOSE COMP. B, FUEL FEED
17526MFL003

9

PIPE COMP BREATHE
17530MKFD40

10

COLLAR SET
17532MKFD40

11

RUBBER, L. FR. TANK MOUNTING
17533MFL000

12

RUBBER, RR. TANK MOUNTING
17534MFL000

13

GUARD FILM SIDE COVER
17535KBH300

14

WASHER TANK SET
17535MKFD40

15

COLLAR SET
17536MKFD40

16

RUBBER, R. FR. TANK MOUNTING
17545MFL000

17

17556MKFD40
17556MKFD40

18

TUBE A BREATHER
17557MKFC40

19

17557MKFD40
17557MKFD40

21

CUSHION, FUEL TANK
17558MEE940

22

CUSHION, FUEL TANK
17558MGPD00

23

JOINT BREATHER TUBE
17561MEE000

24

PACKING, FUEL PUMP
17574MFJD00

25

PLATE FUEL PUMP S
17575MKFD40

25

PLATE FUEL PUMP S
17575MKFD60

26

SEAL, OUTER
17576MFJD00

27

COVER, FUEL CONNECTOR
17580MFJD00

28

CAP COMP FUEL
17620MKFD61

29

17621MGPD62
17621MGPD61

30

RETAINER(BLUE GREEN)(TOKAI)
17711S0X931

31

RUBBER PROTECTOR
64122MBB300

32

BOLT SOCKET 6X25
90107MKFD40

33

BOLT SOCKET 4X29
90111MKFD40

34

NUT,FLANGE 6MM
9405006080stok 295

Rp 1,500

Tambah

Barang ini telah ditambahkan ke keranjang anda.

34

NUT FLANGE 6MM
90217HW1670

36

CLIP B8,TUBE
9500202080stok 73

Rp 10,500

Tambah

Barang ini telah ditambahkan ke keranjang anda.

37

TUBE 7.3X360
950057536020

38

RUBBER
61313GJ1000

39

RUBBER PROTECTOR
15605MCFD30

Berapa Harga Suku Cadang Di Katalog Ini ?

Anda bisa mencatat kode suku cadang yang anda inginkan diatas lalu cari harganya di halaman harga suku cadang motor Honda. Harga tertera disana adalah harga resmi suku cadang motor Honda untuk Indonesia.
