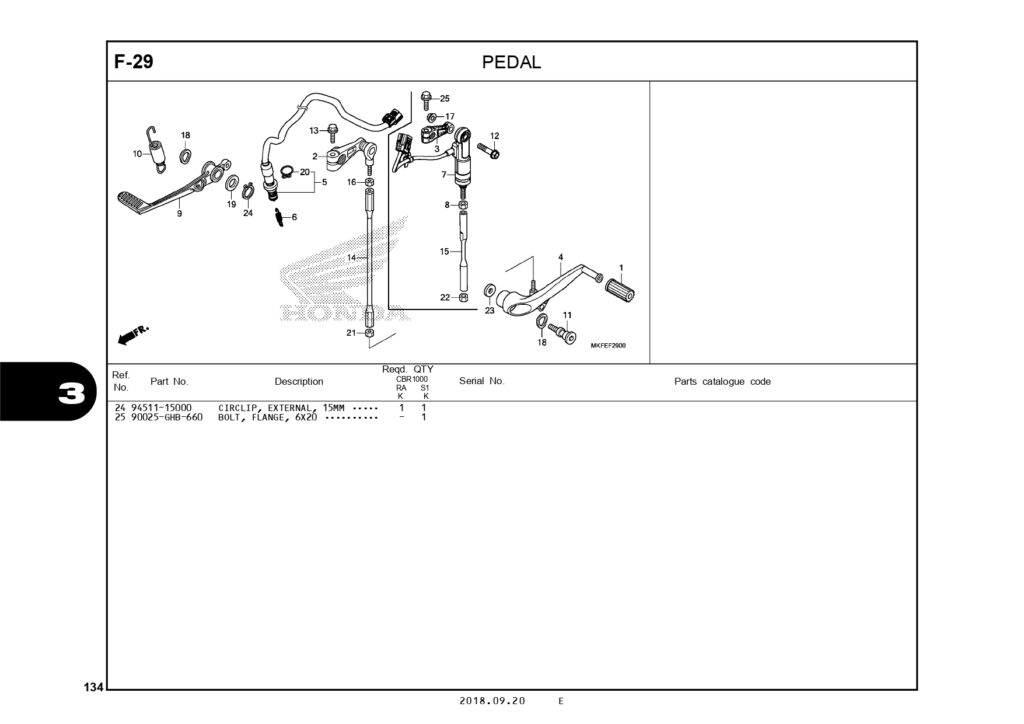

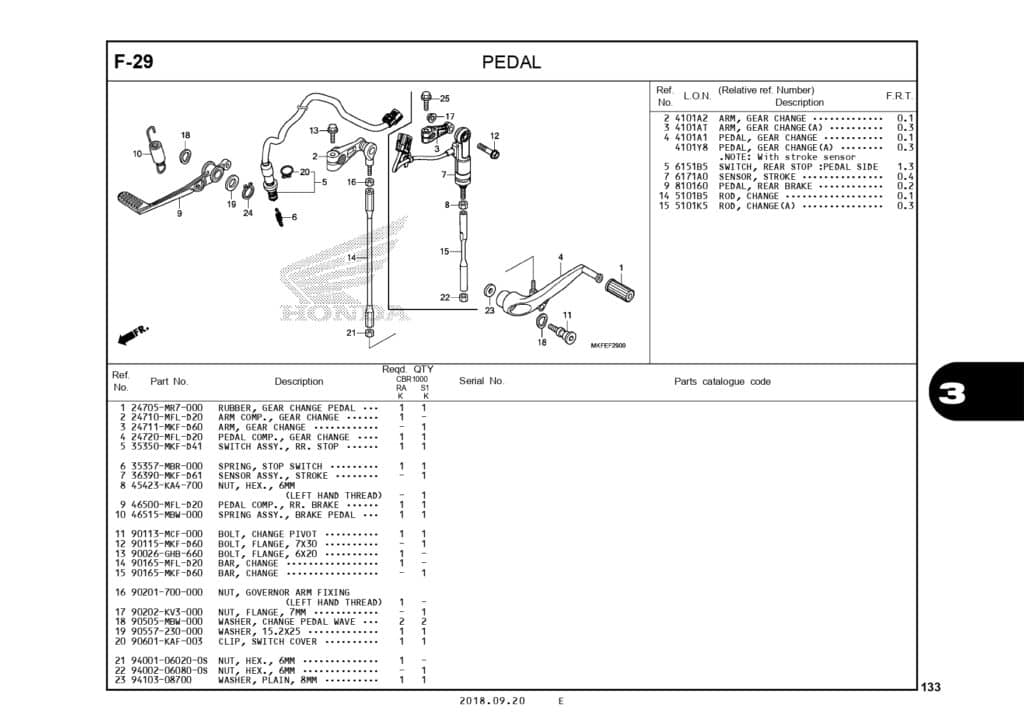

F-29 Pedal – Katalog Honda CBR1000RA/S1

#

Gambar

Nama Part

Harga

Order

1

RUBBER, GEAR CHANGE PEDAL
24705MR7000

2

ARM COMP., GEAR CHANGE
24710MFLD20

3

ARM GEAR CHANGE
24711MKFD60

4

PEDAL COMP., GEAR CHANGE
24720MFLD20

5

SW ASSY REAR STOP
35350MKFD41

6

SPRING, STOP SWITCH LBL
35357MBR000

7

SENSOR ASSY STROK
36390MKFD61

8

NUT HEX. 6MM
45423KA4700

9

PEDAL COMP., RR. BRAKE
46500MFLD20

10

SPRING ASSY., BRAKE PEDAL LBL
46515MBW000

11

BOLT, CHANGE PIVOT
90113MCF000

12

BOLT,FLANGE 7X30
90115MKFD60stok 47

Rp 2,500

Tambah

Barang ini telah ditambahkan ke keranjang anda.

13

BOLT FLANGE S-NSH
90026GHB660

14

BAR, CHANGE
90165MFLD20

15

BAR CHANGE
90165MKFD60

16

NUT, GOVERNOR ARM FIXING
90201700000

17

NUT,FLANGE 7MM
90202KV3000

18

WASHER, CHANGE PEDAL WAVE
90505MBW000

19

WSHR,15.2X25
90557230000stok habis

Rp 26,500

stok habis

20

CLIP,SWITCH COVER
90601KAF003stok habis

Rp 19,500

stok habis

21

NUT, HEX., 6MM
94001060200S

22

NUT,HEX 6MM
94002060800S

23

WASHER, PLAIN, 8MM
9410308700stok habis

Rp 5,500

stok habis

24

CIRCLIP EX,15MM
9451115000

25

BOLT FLANGE S-NSH
90025GHB660

Berapa Harga Suku Cadang Di Katalog Ini ?

Anda bisa mencatat kode suku cadang yang anda inginkan diatas lalu cari harganya di halaman harga suku cadang motor Honda. Harga tertera disana adalah harga resmi suku cadang motor Honda untuk Indonesia.
