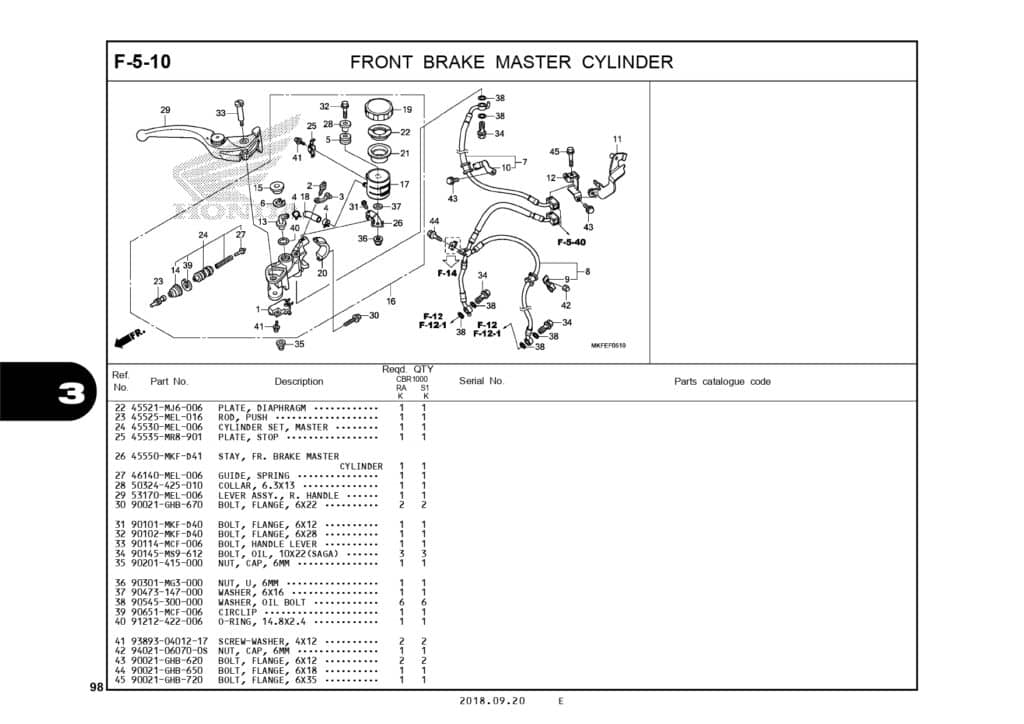

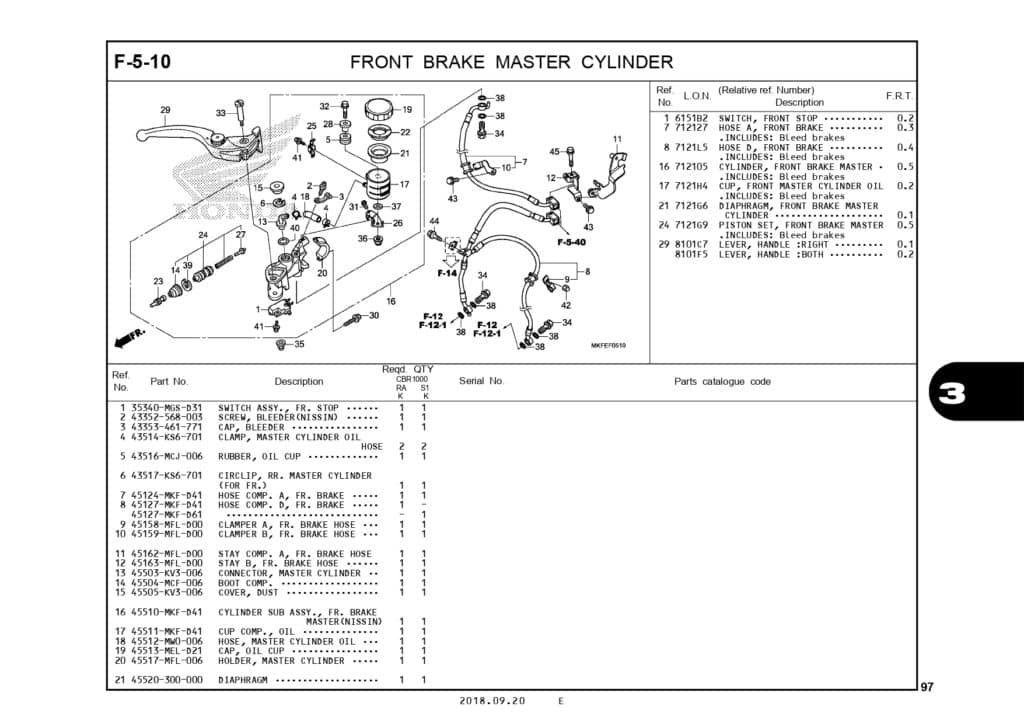

F-5-10 Front Brake Master Cylinder – Katalog Honda CBR1000RA/S1
#
Gambar
Nama Part
Harga
Order
5
RUBBER, OIL CUP
43516MCJ006
43516MCJ006
7
HOSE COMP A FR BRK
45124MKFD41
45124MKFD41
8
HOSE COMP D FR BR
45127MKFD41
45127MKFD41
8
HOSE COMP D FR BR
45127MKFD61
45127MKFD61
9
CLAMPER A, FR. BRAKE HOSE
45158MFLD00
45158MFLD00
10
CLAMPER B, FR. BRAKE HOSE
45159MFLD00
45159MFLD00
11
STAY COMP. A, FR. BRAKE HOSE
45162MFLD00
45162MFLD00
12
STAY B, FR. BRAKE HOSE
45163MFLD00
45163MFLD00
13
CONNECTOR, MASTER CYLINDER
45503KV3006
45503KV3006
14
BOOT COMP.
45504MCF006
45504MCF006
15
COVER, DUST
45505KV3006
45505KV3006
16
SUB ASSY FR M/C
45510MKFD41
45510MKFD41
17
OIL CUP COMP
45511MKFD41
45511MKFD41
18
HOSE, MASTER CYLINDER OIL
45512MW0006
45512MW0006
19
CAP, OIL CUP
45513MELD21
45513MELD21
20
HOLDER, MASTER CYLINDER
45517MFL006
45517MFL006
21
DIAPHRAGM
45520300000
45520300000
22
PLATE, DIAPHRAGM
45521MJ6006
45521MJ6006
23
ROD, PUSH
45525MEL016
45525MEL016
24
CYLINDER SET, MASTER
45530MEL006
45530MEL006
25
PLATE, STOP
45535MR8901
45535MR8901
26
STAY FR M/C
45550MKFD41
45550MKFD41
27
GUIDE, SPRING
46140MEL006
46140MEL006
28
COLLAR 6.3X13
50324425010
50324425010
29
LEVER ASSY R HNDL
53170MEL006
53170MEL006
30
BOLT FLANGE S-SHD
90021GHB670
90021GHB670
31
BOLT SH DR 6X12
90101MKFD40
90101MKFD40
32
BOLT SH DR 6X28
90102MKFD40
90102MKFD40
33
BOLT, HANDLE LEVER
90114MCF006
90114MCF006
34
BOLT OIL 10X22
90145MS9612
90145MS9612
35
NUT,CAP 6MM
90201415000
90201415000
36
NUT, U, 6MM
90301MG3000
90301MG3000
37
WASHER, 6X16
90473147000
90473147000
39
CIRCLIP
90651MCF006
90651MCF006
41
Rp 5,500
43
BOLT FLANGE S-SHD
90021GHB620
90021GHB620
44
BOLT FLANGE S-SHD
90021GHB650
90021GHB650
45
BOLT FLANGE S-SHD
90021GHB720
90021GHB720
Berapa Harga Suku Cadang Di Katalog Ini ?
Anda bisa mencatat kode suku cadang yang anda inginkan diatas lalu cari harganya di halaman harga suku cadang motor Honda. Harga tertera disana adalah harga resmi suku cadang motor Honda untuk Indonesia.
