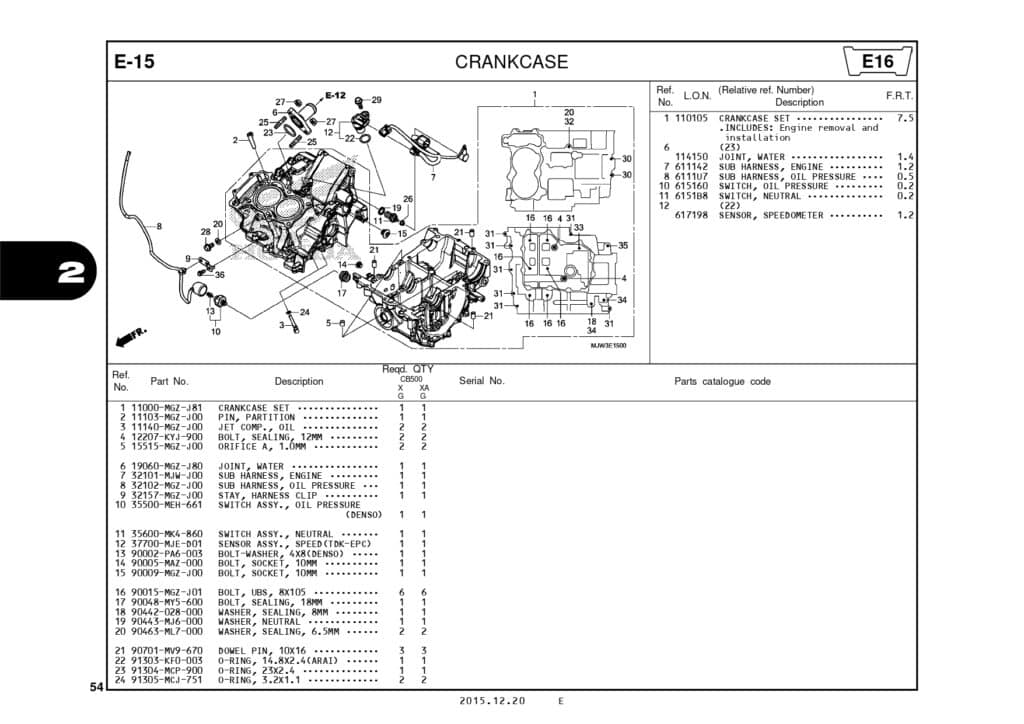

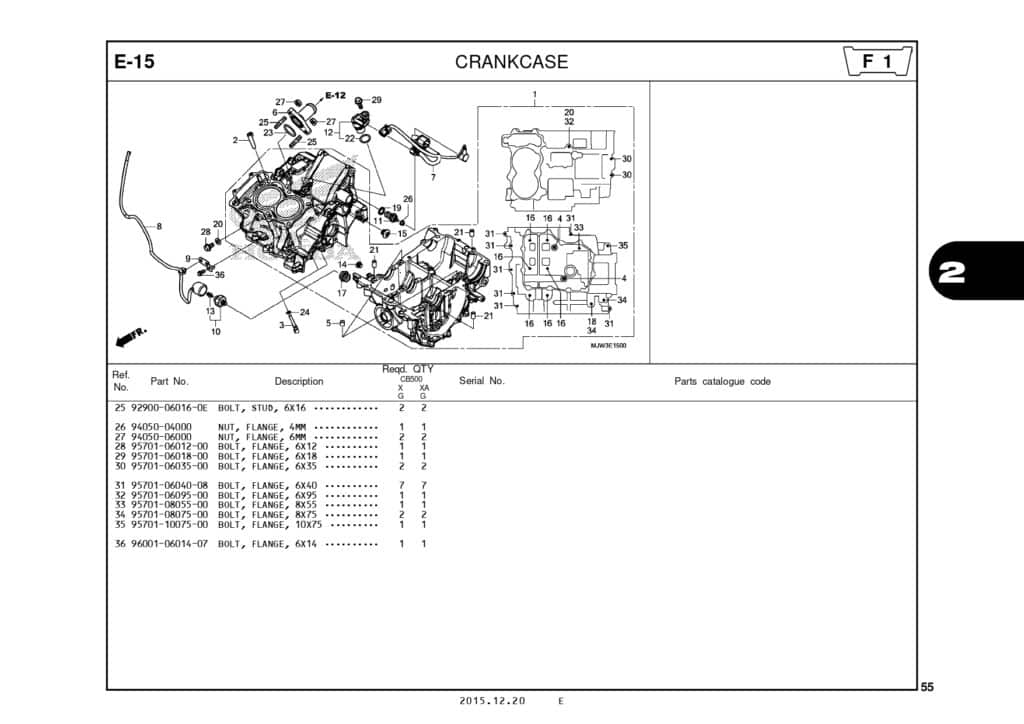

E-15 Crankcase – Katalog Suku Cadang Honda CB500X MJW
#
Gambar
Nama Part
Harga
Order
1
CRANKCASE SET
11000MGZJ81
11000MGZJ81
2
PIN, PARTITION
11103MGZJ00
11103MGZJ00
3
JET COMP., OIL
11140MGZJ00
11140MGZJ00
5
ORIFICE A, 1.0MM
15515MGZJ00
15515MGZJ00
6
JOINT, WATER
19060MGZJ80
19060MGZJ80
7
SUB HARNESS, ENGINE
32101MJWJ00
32101MJWJ00
8
SUB HARNESS, OIL PRESSURE
32102MGZJ00
32102MGZJ00
9
STAY, HARNESS CLIP
32157MGZJ00
32157MGZJ00
10
SWITCH ASSY., OIL PRESSURE
35500MEH661
35500MEH661
11
SWITCH ASSY., NEUTRAL
35600MK4860
35600MK4860
12
SENSOR ASSY., SPEED
37700MJED01
37700MJED01
13
BOLT-WASHER, 4X8(DENSO)
90002PA6003
90002PA6003
14
Rp 19,000
15
BOLT, SOCKET, 10MM
90009MGZJ00
90009MGZJ00
16
BOLT, UBS, 8X105
90015MGZJ01
90015MGZJ01
17
BOLT, SEALING, 18MM
90048MY5600
90048MY5600
20
Rp 5,000
21
DOWEL PIN, 10X16
90701MV9670
90701MV9670
23
O-RING, 23X2.4
91304MCP900
91304MCP900
24
O-RING, 3.2X1.1
91305MCJ751
91305MCJ751
25
BOLT, STUD, 6X16
92900060160E
92900060160E
28
Rp 5,000
30
Rp 8,000
31
BOLT, FLANGE, 6X40
957010604008
957010604008
33
Rp 10,200
34
BOLT, FLANGE, 8X75
957010807500
957010807500
35
BOLT, FLANGE, 10X75
957011007500
957011007500
36
Rp 14,500
Berapa Harga Suku Cadang Di Katalog Ini ?
Anda bisa mencatat kode suku cadang yang anda inginkan diatas lalu cari harganya di halaman harga suku cadang motor Honda. Harga tertera disana adalah harga resmi suku cadang motor Honda untuk Indonesia.
