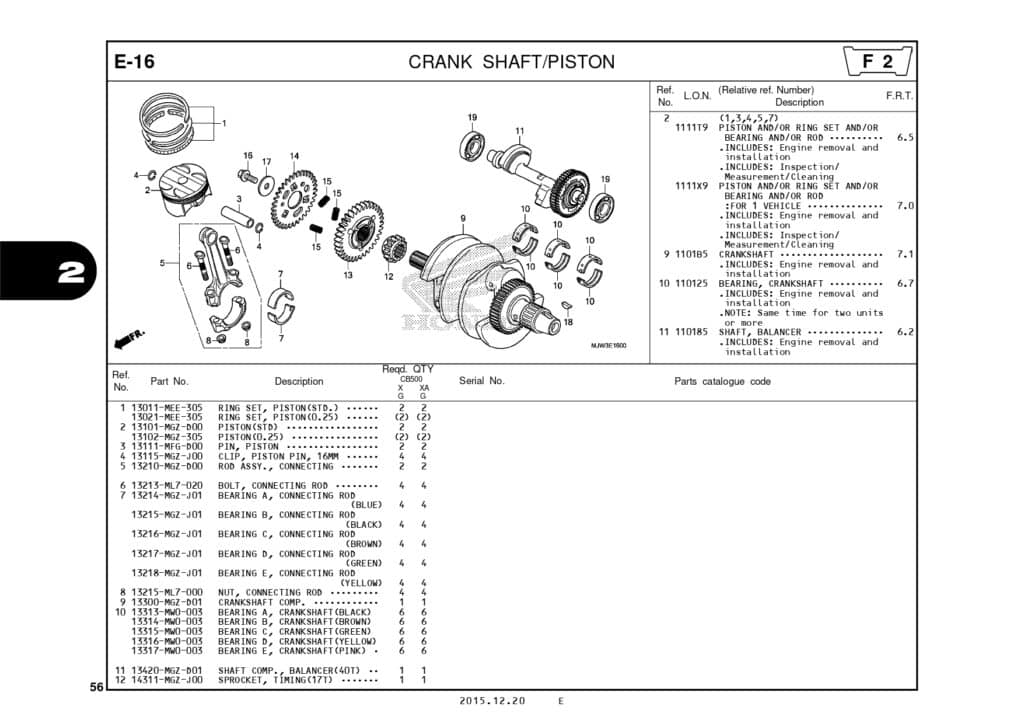

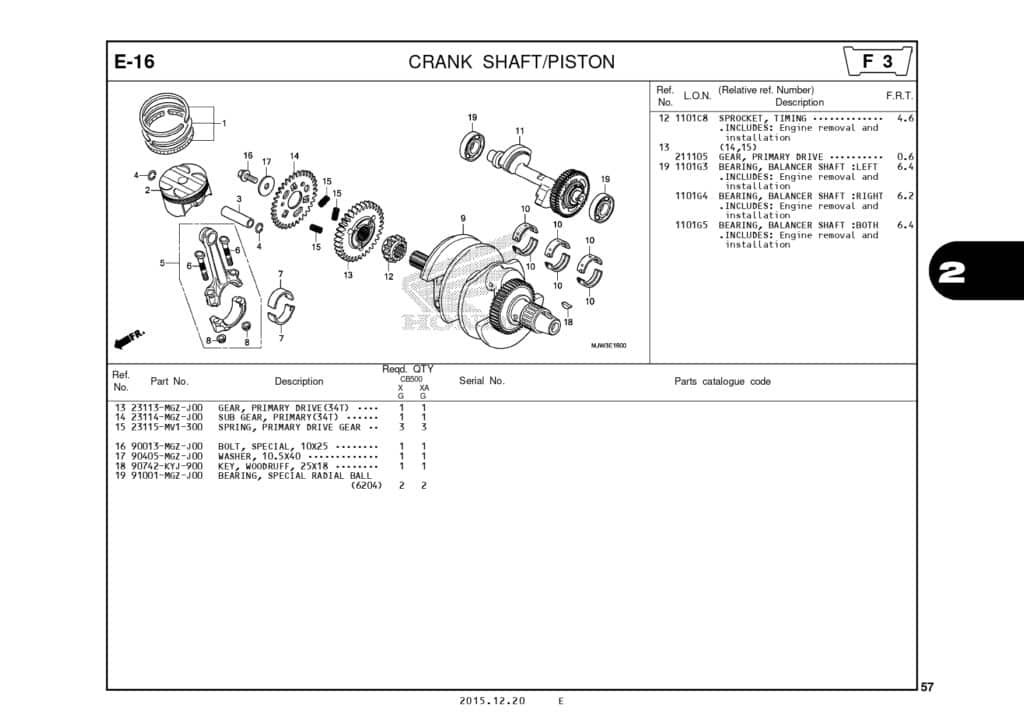

E-16 Cranksaft Piston – Katalog Suku Cadang Honda CB500X MJW

#

Gambar

Nama Part

Harga

Order

1

RING SET, PISTON(STD.)
13011MEE305

1

RING SET, PISTON(0.25)
13021MEE305

2

PISTON(STD)
13101MGZD00

2

PISTON(0.25)
13102MGZ305

3

PIN, PISTON
13111MFGD00

4

CLIP, PISTON PIN, 16MM
13115MGZJ00

5

ROD ASSY., CONNECTING
13210MGZD00

6

BOLT, CONNECTING ROD
13213ML7020

7

BEARING A, CONNECTING ROD
13214MGZJ01

7

BEARING B, CONNECTING ROD
13215MGZJ01

7

BEARING C, CONNECTING ROD
13216MGZJ01

7

BEARING D, CONNECTING ROD
13217MGZJ01

7

BEARING E, CONNECTING ROD
13218MGZJ01

8

NUT, CONNECTING ROD
13215ML7000

9

CRANKSHAFT COMP.
13300MGZD01

10

BEARING A, CRANKSHAFT(BLACK)
13313MW0003

10

BEARING B, CRANKSHAFT(BROWN)
13314MW0003

10

BEARING C, CRANKSHAFT(GREEN)
13315MW0003

10

BEARING D, CRANKSHAFT(YELLOW)
13316MW0003

10

BEARING E, CRANKSHAFT(PINK)
13317MW0003

11

SHAFT COMP., BALANCER(40T)
13420MGZD01

12

SPROCKET, TIMING(17T)
14311MGZJ00

13

GEAR, PRIMARY DRIVE(34T)
23113MGZJ00

14

SUB GEAR, PRIMARY(34T)
23114MGZJ00

15

SPRING, PRIMARY DRIVE GEAR
23115MV1300

16

BOLT, SPECIAL, 10X25
90013MGZJ00

17

WASHER, 10.5X40
90405MGZJ00

18

KEY,WOODRUFF,25X18
90742KYJ900stok habis

Rp 19,000

stok habis

19

BEARING, SPECIAL RADIAL BALL
91001MGZJ00

Berapa Harga Suku Cadang Di Katalog Ini ?

Anda bisa mencatat kode suku cadang yang anda inginkan diatas lalu cari harganya di halaman harga suku cadang motor Honda. Harga tertera disana adalah harga resmi suku cadang motor Honda untuk Indonesia.
