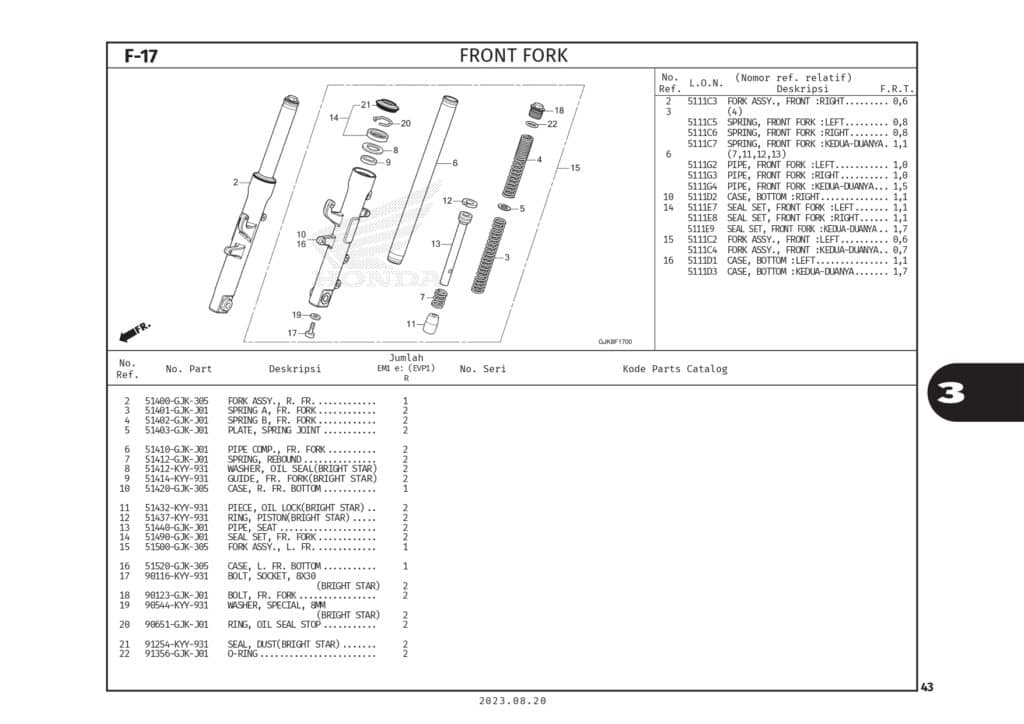

F-17 Front Fork – Katalog Suku Cadang Motor Honda EM1
#
Gambar
Nama Part
Harga
Order
2
FORK ASSY,R FR
51400GJK305
51400GJK305
3
SPRING A,FR FORK
51401GJKJ01
51401GJKJ01
4
SPRING B,FR FORK
51402GJKJ01
51402GJKJ01
5
PLATE,SPG JOINT
51403GJKJ01
51403GJKJ01
6
PIPE COMP,FR FORK
51410GJKJ01
51410GJKJ01
7
WASHER,OIL SEAL
51412GJKJ01
51412GJKJ01
8
WASHER,OIL SEAL
51412KYY931
51412KYY931
9
GUIDE,FR FORK
51414KYY931
51414KYY931
10
CASE,R FR BOTTOM
51420GJK305
51420GJK305
11
PIECE,OIL LOCK
51432KYY931
51432KYY931
12
RING,PISTON
51437KYY931
51437KYY931
13
PIPE,SEAT
51440GJKJ01
51440GJKJ01
14
SEAL SET FR FORK
51490GJKJ01
51490GJKJ01
15
FORK ASSY,L FR
51500GJK305
51500GJK305
16
CASE,L FR BOTTOM
51520GJK305
51520GJK305
17
BOLT,SOCKET 8X30
90116KYY931
90116KYY931
18
BOLT,FR FORK
90123GJKJ01
90123GJKJ01
19
WASHER,SPECIAL 8MM
90544KYY931
90544KYY931
20
RING,OIL SEAL STOP
90651GJKJ01
90651GJKJ01
21
SEAL,DUST
91254KYY931
91254KYY931
22
O RING
91356GJKJ01
91356GJKJ01
Berapa Harga Suku Cadang Di Katalog Ini ?
Anda bisa mencatat kode suku cadang yang anda inginkan diatas lalu cari harganya di halaman harga suku cadang motor Honda. Harga tertera disana adalah harga resmi suku cadang motor Honda untuk Indonesia.
