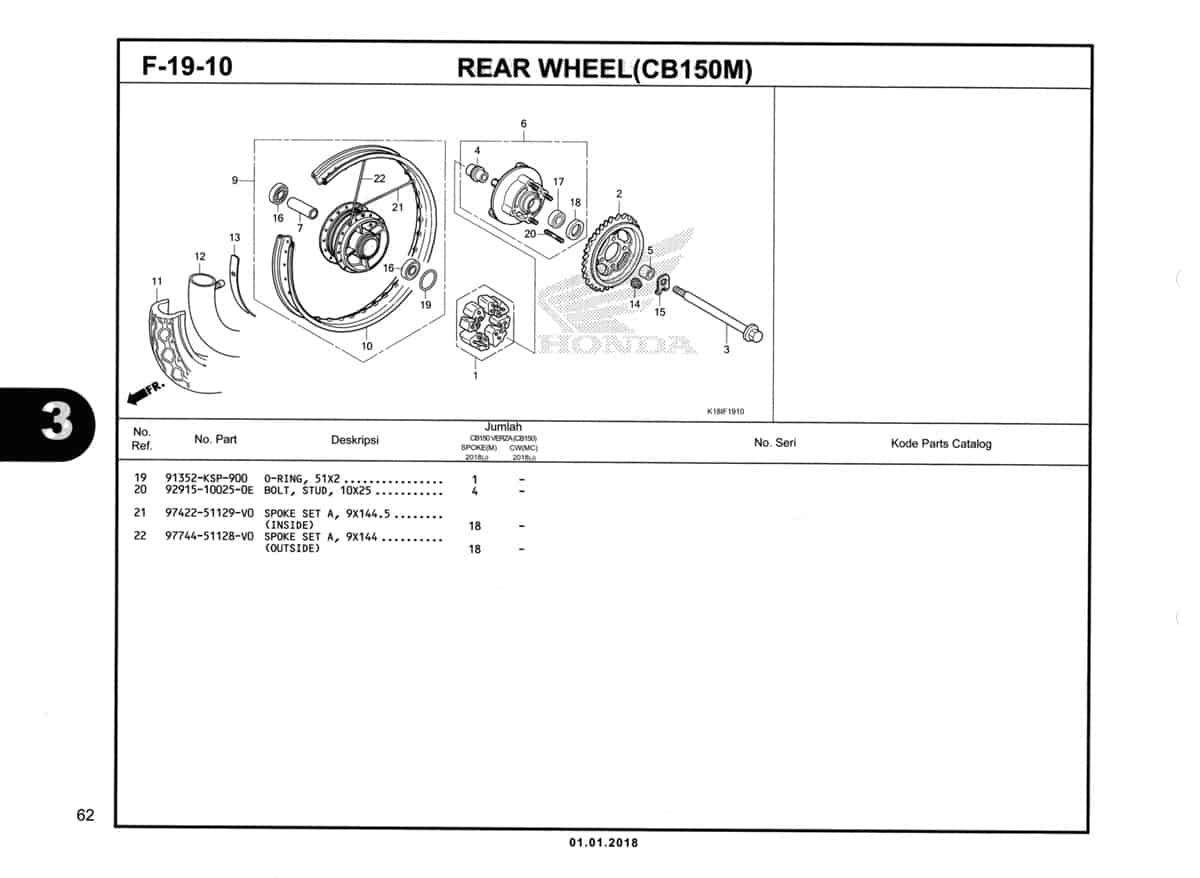

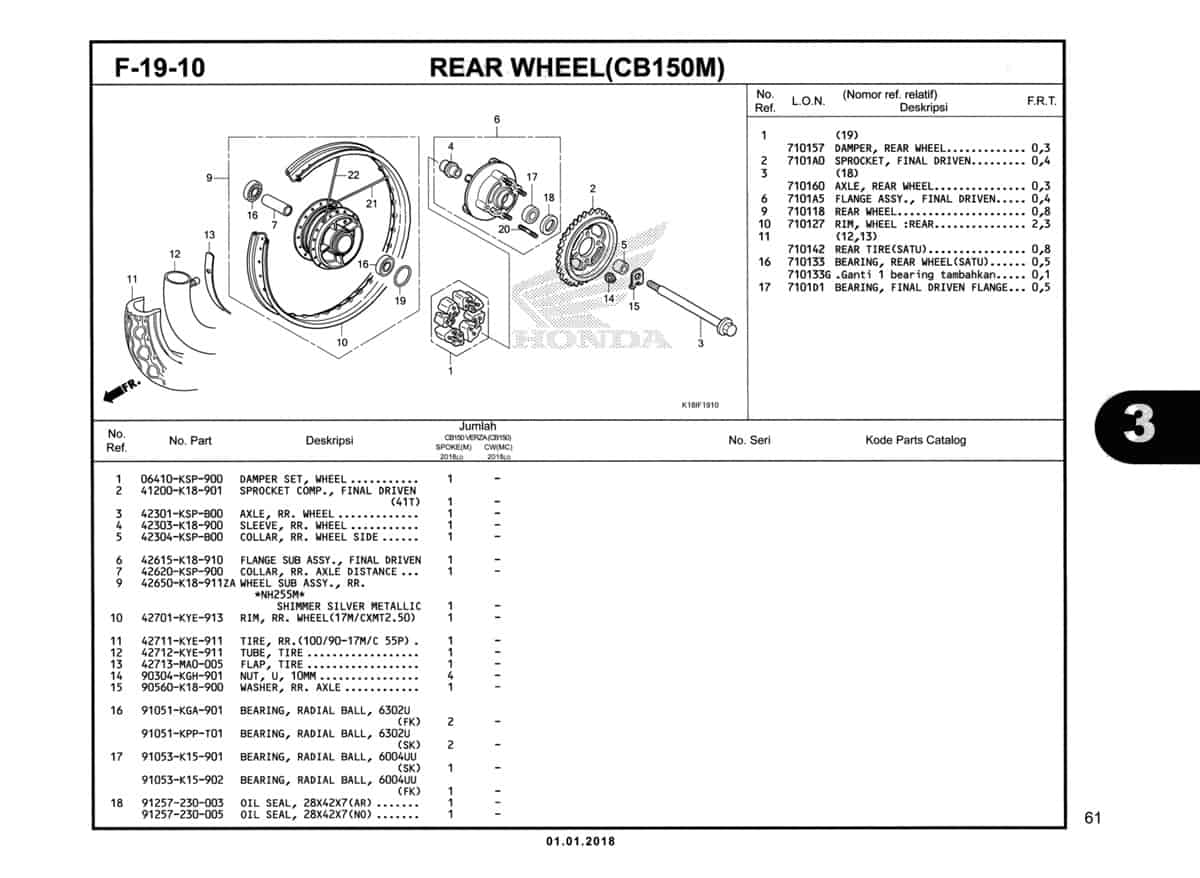

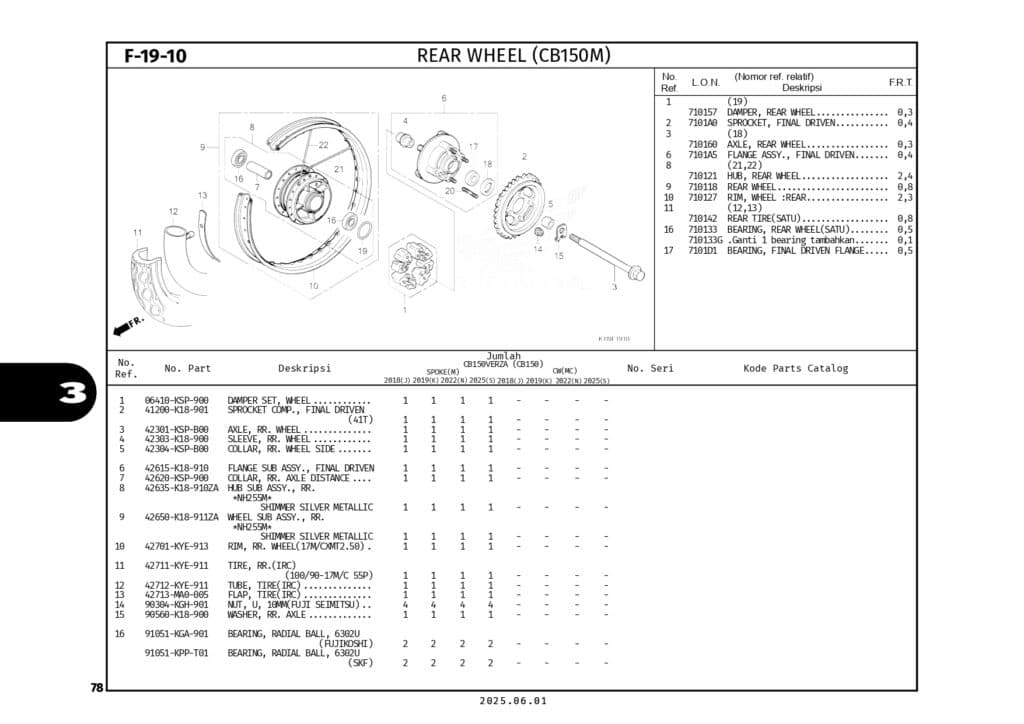

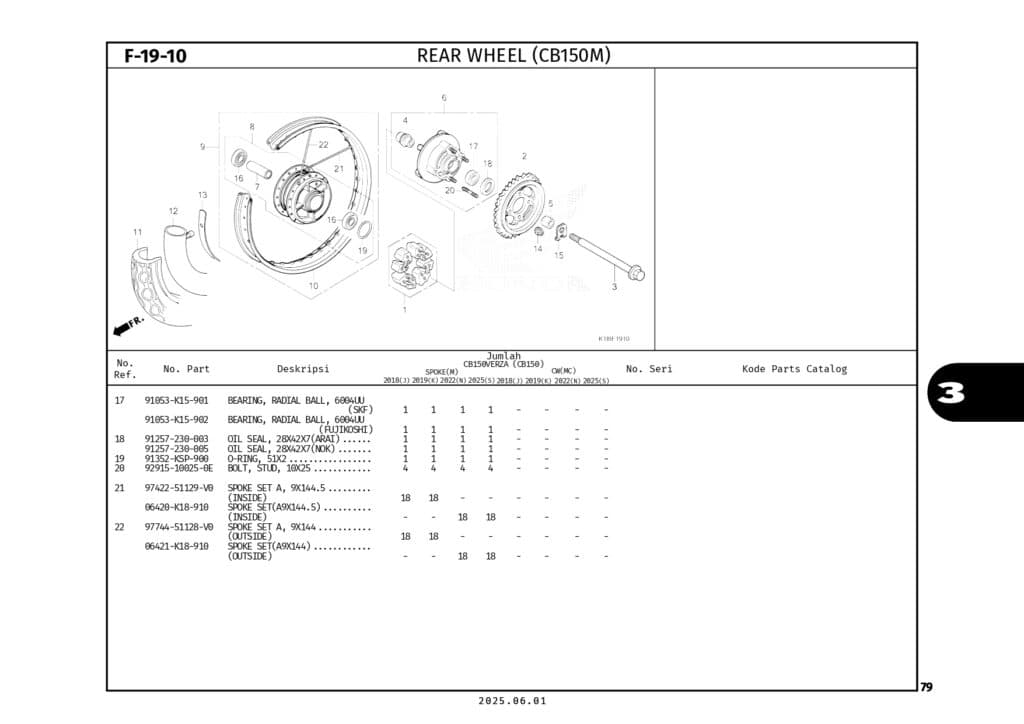

F19-10 – Rear Wheel (CB150M) – Katalog Honda CB150 Verza

#

Gambar

Nama Part

Harga

Order

1

Damper Set Wheel
06410KSP900stok habis

Rp 58,000

stok habis

2

Sprocket Comp Final Driven
41200K18901stok habis

Rp 142,000

stok habis

3

Axle RR Wheel
42301KSPB00stok habis

Rp 38,000

stok habis

4

Sleeve RR Wheel
42303K18900

5

Collar RR Wheel Side
42304KSPB00

6

Flange Sub Assy Final Driven
42615K18910

7

Collar RR Axle Dist
42620KSP900stok habis

Rp 9,000

stok habis

9

Wheel Sub Assy RR
42650K18911ZA

10

Rim RR Wheel
42701KYE913

11

Tire RR (100/90-17 NR25)
42711KYE911stok habis

Rp 332,000

stok habis

12

Tube Tire 100/90-17
42712KYE911

13

Flap Tire
42713MA0005

14

Nut U10MM
90304KGH901stok 6

Rp 9,000

Tambah

Barang ini telah ditambahkan ke keranjang anda.

15

Washer RR Axle
90560K18900stok habis

Rp 10,000

stok habis

16

Bearing Radial Ball 6302 (U)
91051KGA901

16

Bearing Radial Ball 6302
91051KPPT01

17

Bearing Radial Ball 6004U(SKF)
91053K15901

17

Bearing Radial Ball 6004UU(NC)
91053K15902

18

Oil Seal 28X42X7
91257230003stok habis

Rp 39,000

stok habis

18

Oil Seal 28X42X7
91257230005stok habis

Rp 4,000

stok habis

19

O-Ring 51X2
91352KSP900stok habis

Rp 2,000

stok habis

20

Bolt Stud 10X25
92915100250Estok habis

Rp 14,000

stok habis

21

Spoke Set A 9X144.5 (Inside)
9742251129V0

22

Spoke Set A 9X144 (Outside)
9774451128V0

Berapa Harga Suku Cadang Di Katalog Ini ?

Anda bisa mencatat kode suku cadang yang anda inginkan diatas lalu cari harganya di halaman harga suku cadang motor Honda. Harga tertera disana adalah harga resmi suku cadang motor Honda untuk Indonesia.
