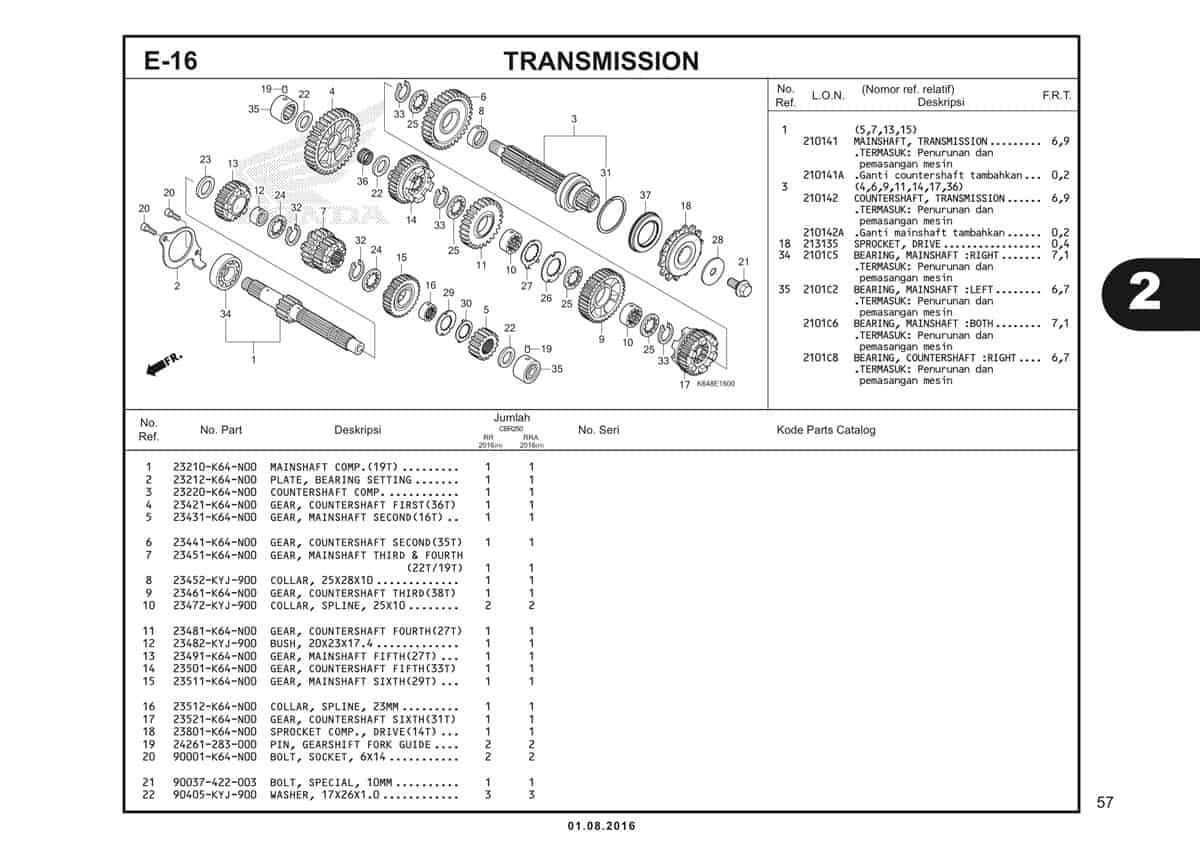

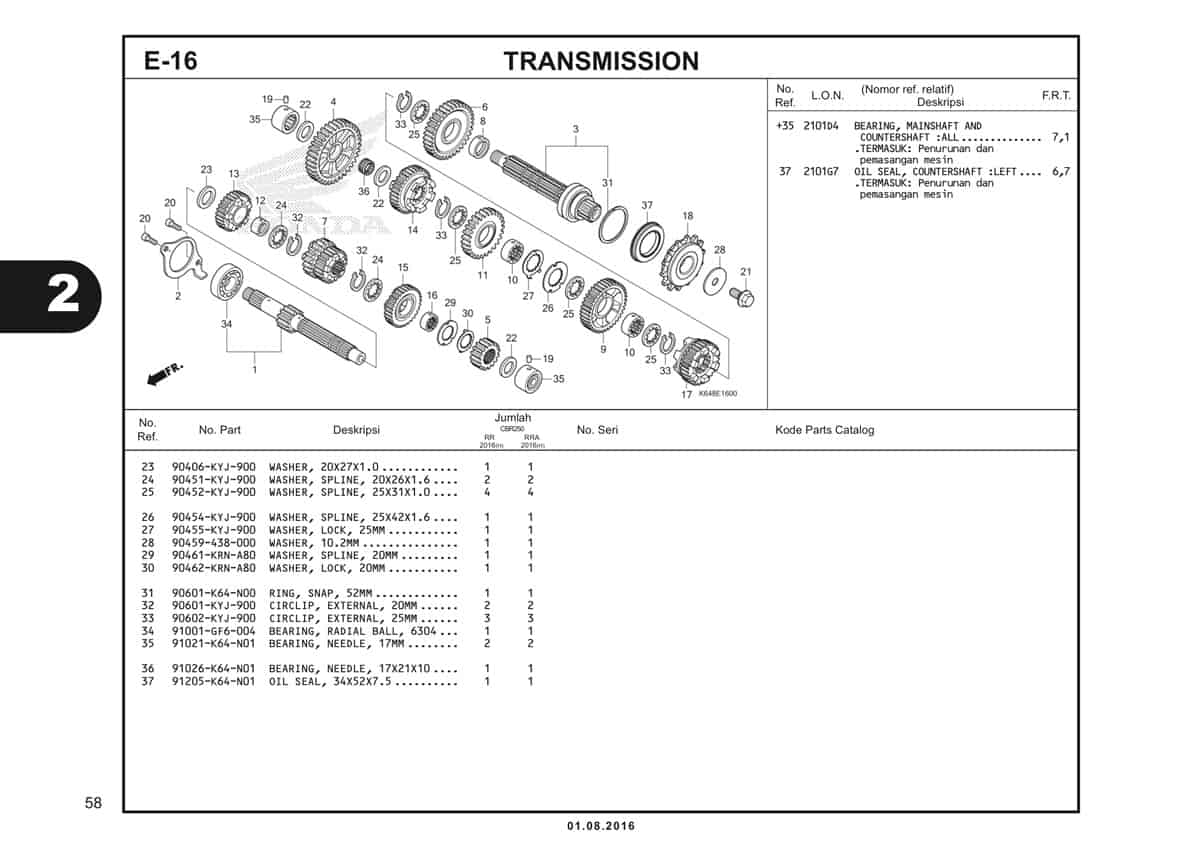

E16 – Transmission – Katalog Honda CBR 250RR K64

#

Gambar

Nama Part

Harga

Order

1

Mainshaft Comp (19T)
23210K64N00

2

Plate Bearing Setting
23212K64N00

3

Countershaft Comp
23220K64N00

4

Gear Countershaft First (36T)
23421K64N00

5

Gear Countershaft First (36T)
23431K64N00

6

Gear Countershaft Second (35T)
23441K64N00

7

Gear Mainshaft Third & Fourth
23451K64N00

8

Collar 25X28X10
23452KYJ900

9

Gear Countershaft Third (38T)
23461K64N00

10

Collar Spline 25X10
23472KYJ900

11

Gear Countershaft Fourth (27T)
23481K64N00

12

Bush 20X23X17.4
23482KYJ900

13

Gear Mainshaft Fifth (27T)
23491K64N00

14

Gear Countershaft Fifth (33T)
23501K64N00

15

Gear Mainshaft Sixth (29T)
23511K64N00

16

Collar Spline 23MM
23512K64N00

17

Gear Countershaft SIXTH(31T)
23521K64N00

18

Sprocket Comp Drive (14T)
23801K64N00stok 4

Rp 105,000

Tambah

Barang ini telah ditambahkan ke keranjang anda.

19

Pin Gearshift Fork Guide
24261283000

20

Bolt Socket 6X14
90001K64N00

21

Bolt Special 10MM
90037422003

22

Washer 17X26X1.0
90405KYJ900

23

Washer 20X27X1.0
90406KYJ900

24

Washer Spline 20X26X1.6
90451KYJ900

25

Washer Spline 25X31X1.0
90452KYJ900

26

Washer Spline 25X42X1.6
90454KYJ900

27

Washer Lock 25MM
90455KYJ900

28

Washer 10.2MM
90459438000

29

Washer Spline 20MM
90461KRNA80

30

Washer Lock 20MM
90462KRNA80

31

Ring Snap 52MM
90601K64N00

32

Circlip EX 20MM
90601KYJ900

33

Circlip EX 25MM
90602KYJ900

34

Bearing Radial Ball 6304
91001GF6004

35

Bearing Needle 17MM
91021K64N01

36

Bearing Needle 17X21X10
91026K64N01

37

Oil Seal 34X52X7.5
91205K64N01

Berapa Harga Suku Cadang Di Katalog Ini ?

Anda bisa mencatat kode suku cadang yang anda inginkan diatas lalu cari harganya di halaman harga suku cadang motor Honda. Harga tertera disana adalah harga resmi suku cadang motor Honda untuk Indonesia.
