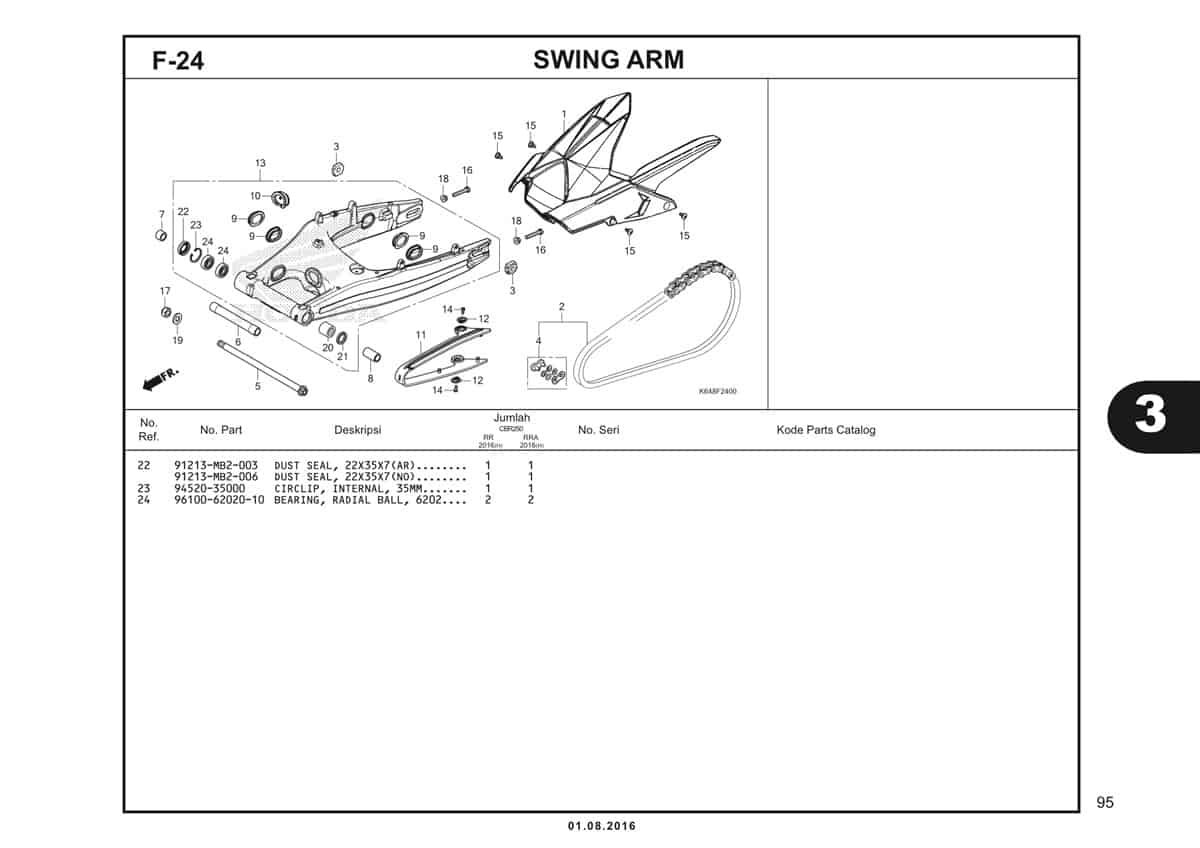

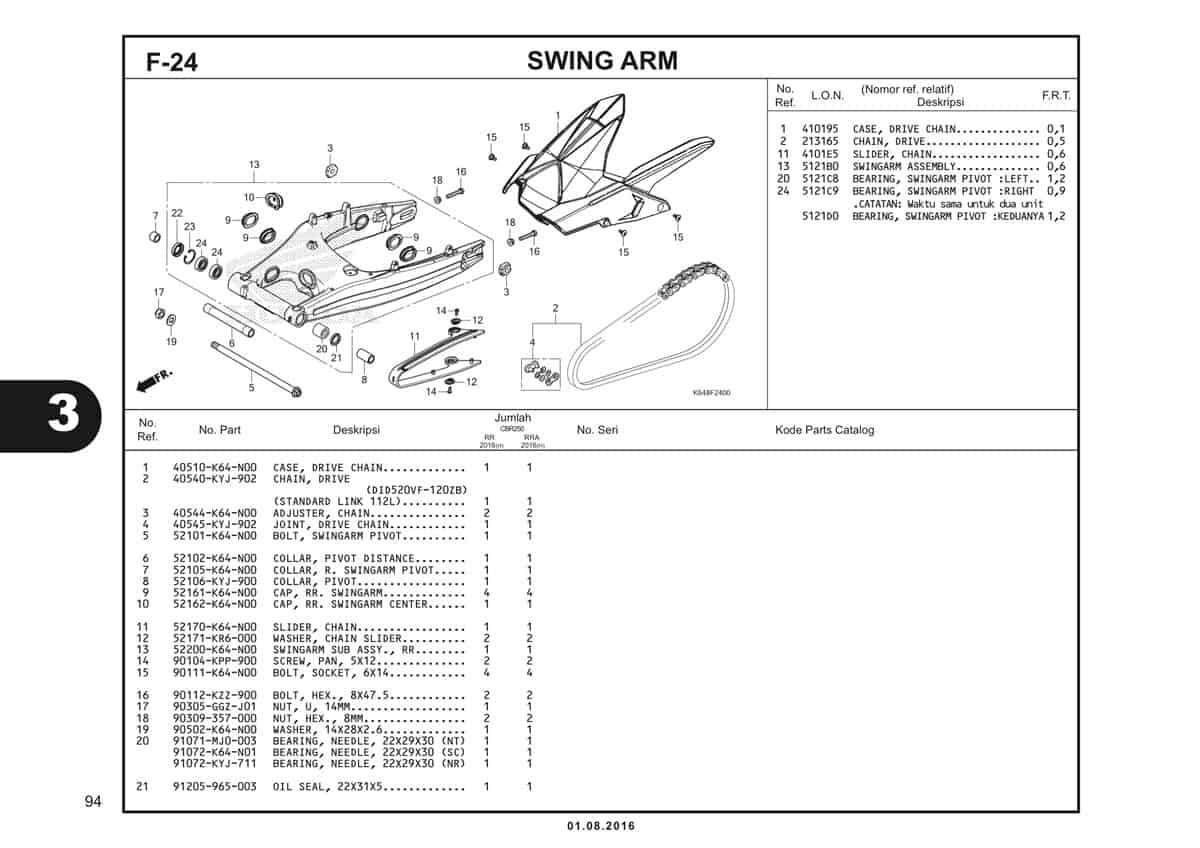

F24 – Swing Arm – Katalog Honda CBR 250RR K64
#
Gambar
Nama Part
Harga
Order
2
Chain Drive
40540KYJ902
40540KYJ902
3
Adjuster Chain
40544K64N00
40544K64N00
5
Bolt Swingarm Pivot
52101K64N00
52101K64N00
6
Collar Pivot Distance
52102K64N00
52102K64N00
7
Collar R Swingarm Pivot
52105K64N00
52105K64N00
8
Collar Pivot
52106KYJ900
52106KYJ900
10
Cap RR Swingarm Center
52162K64N00
52162K64N00
11
Slider Chain
52170K64N00
52170K64N00
12
Washer Chain Slider
52171KR6000
52171KR6000
13
Swingarm Sub Assy RR
52200K64N00
52200K64N00
14
Screw Pan 5X16
90104KPP900
90104KPP900
16
Bolt Hex 8X47.5
90112KZZ900
90112KZZ900
18
Nut Hex 8MM
90309357000
90309357000
19
Washer 14X28X2.6
90502K64N00
90502K64N00
20
Bearig Needle 22X29X30 (NT)
91071MJ0003
91071MJ0003
20
Bearig Needle 22X29X30 (SC)
91072K64N01
91072K64N01
20
Bearig Needle 22X29X30 (NR)
91072KYJ711
91072KYJ711
21
Oil Seal 22X31X5
91205965003
91205965003
22
Dust Seal 22X35X7
91213MB2003
91213MB2003
22
Dust Seal 22X35X7
91213MB2006
91213MB2006
23
Circlip In 35MM
9452035000
9452035000
24
Bearing Radial Ball 6202
961006202010
961006202010
Berapa Harga Suku Cadang Di Katalog Ini ?
Anda bisa mencatat kode suku cadang yang anda inginkan diatas lalu cari harganya di halaman harga suku cadang motor Honda. Harga tertera disana adalah harga resmi suku cadang motor Honda untuk Indonesia.
MOHON BANTUAN MAU ORDER PART CBR 250RR, KATALOG HALAMAN F24
1. ITEM 1 : CASE, DRIVE CHAIN. KODE. 40510-K64-N00
2. ITEM 11 : SLIDER, CHAIN. KODE: 52170-K64-N00
3. ITEM 13 : SWINGARM SUB ASSY, RR. KODE: 52200-K64-N00
Pak Indra,
Untuk melakukan pemesanan silahkan datang langsung ke Dealer Wing terdekat untuk proses HLO.
Terima kasih
