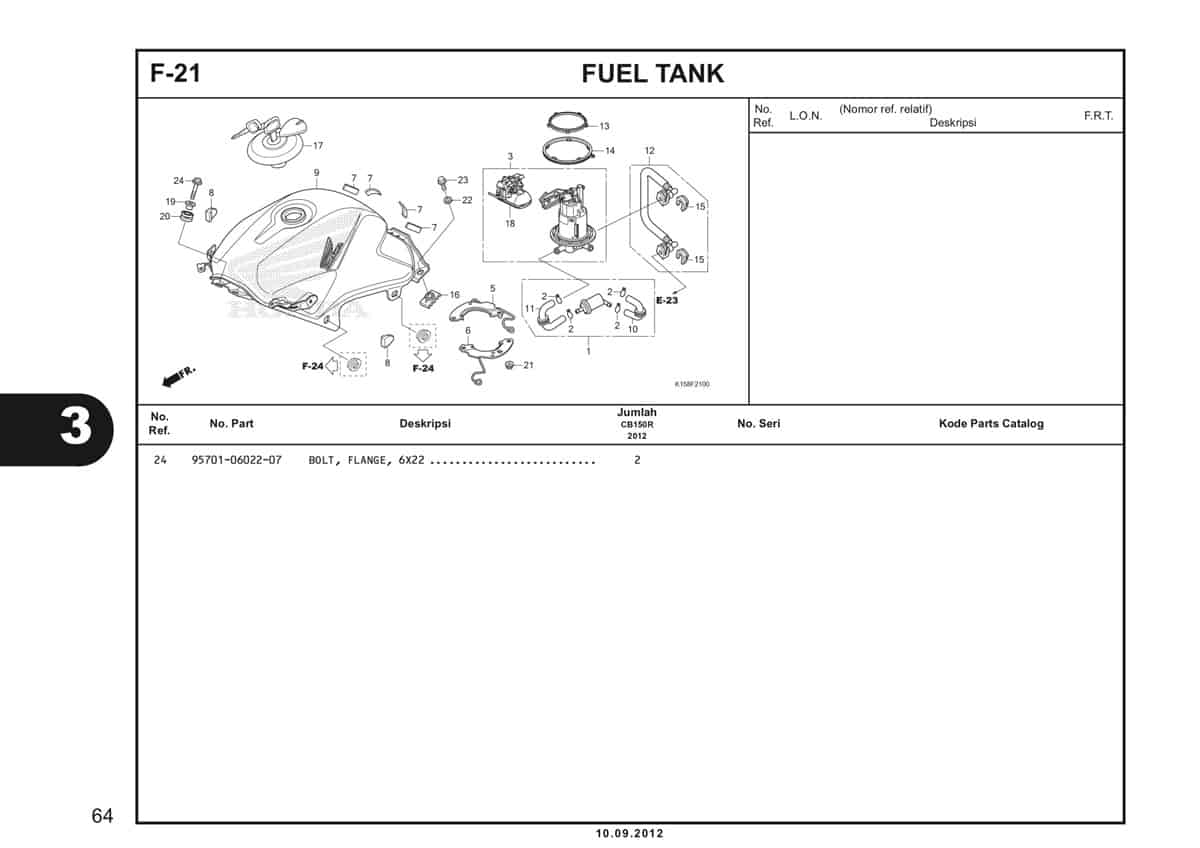

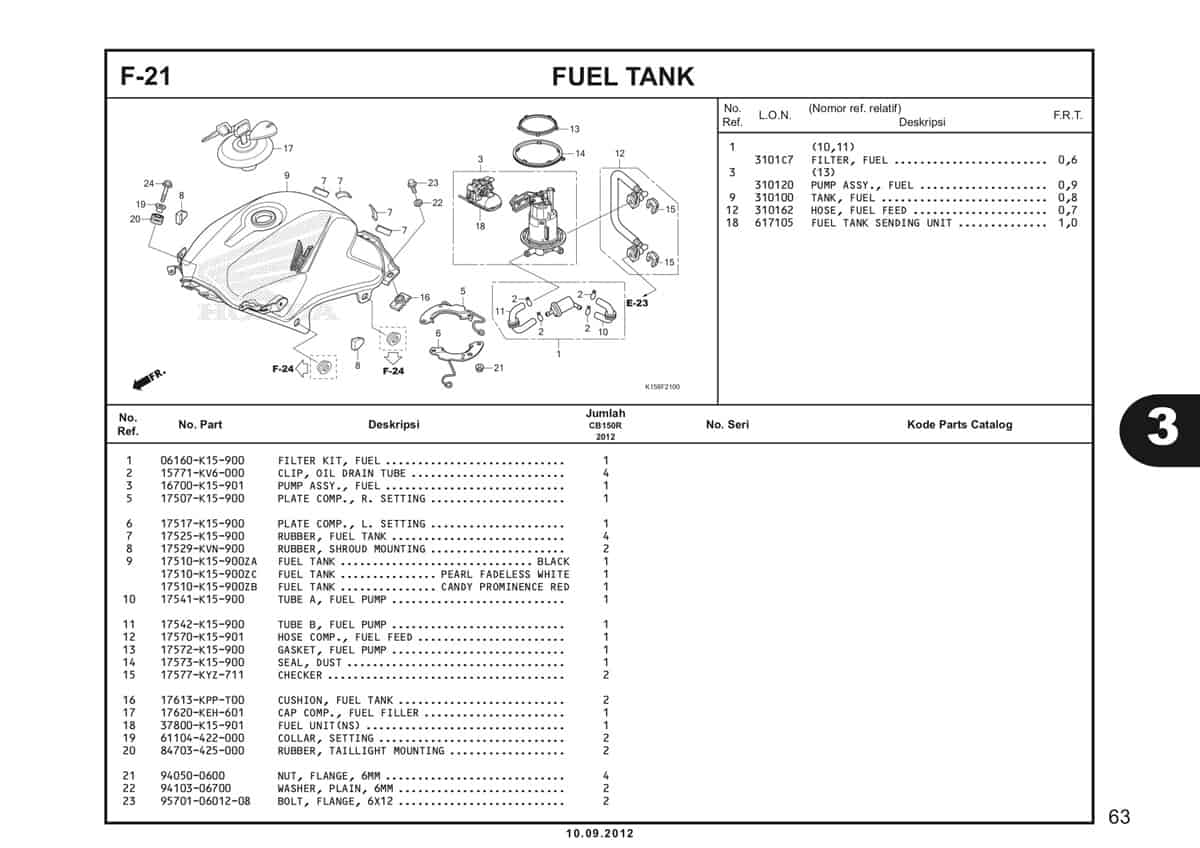

F21 – Fuel Tank – Katalog Honda New CB150R StreetFire K15

#

Gambar

Nama Part

Harga

Order

1

Kit Fuel Filter
06160K15900

2

Clip Oil Drain Tube
15771KV6000stok habis

Rp 3,000

stok habis

3

Unit Assy Fuel Pump
16700K15900

5

Plate Comp R Setting
17507K15900

6

Plate Comp L Setting
17517K15900

7

Rubber Fuel Tank
17525K15900stok habis

Rp 2,000

stok habis

8

Rubber Shroud Mount
17529KVN900

9

Tank Comp Fuel (BLK)
17510K15900ZA

9

Tank Comp Fuel (PL FD WH)
17510K15900ZC

9

Tank Comp Fuel (CN PM RD)
17510K15900ZE

9

Tank Comp Fuel R-258
17510K15900WRD

10

Tube A Fuel Pump
17541K15900

11

Tube B Fuel Pump
17542K15900

12

Hose Comp Fuel Feed
17570K15901

13

Gasket Fuel Pump
17572K15900stok habis

Rp 15,000

stok habis

14

Seal Dust
17573K15900

15

Checker
17577KYZ711

16

Cushion Fuel Tank RR
17613KPPT00

17

Cap Fuel Filler Comp
17620KEH601

18

Fuel Unit
37800K15901

19

Collar Setting
61104422000stok habis

Rp 2,000

stok habis

20

Rubber Tail Light
84703425000stok habis

Rp 2,000

stok habis

21

Nut Flange 6MM
9405006000stok habis

Rp 3,600

stok habis

22

Washer Plain 6MM
9410306700stok habis

Rp 500

stok habis

23

Bolt Flange 6X12
957010601208stok habis

Rp 3,500

stok habis

24

Bolt Flange 6X22
957010602207stok habis

Rp 8,000

stok habis

Berapa Harga Suku Cadang Di Katalog Ini ?

Anda bisa mencatat kode suku cadang yang anda inginkan diatas lalu cari harganya di halaman harga suku cadang motor Honda. Harga tertera disana adalah harga resmi suku cadang motor Honda untuk Indonesia.
