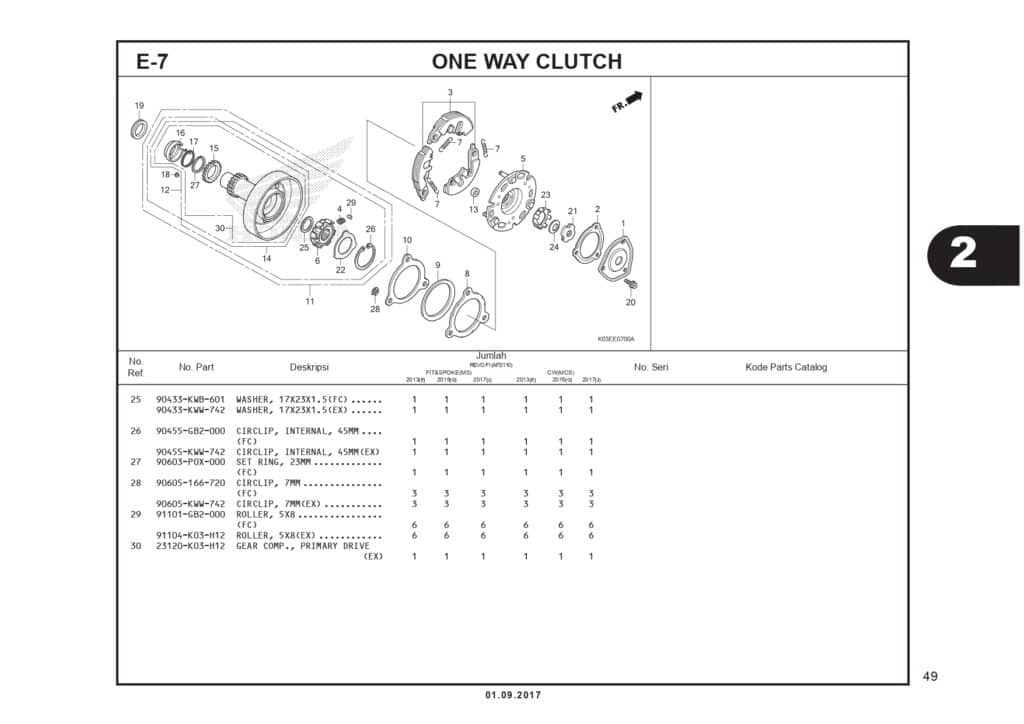

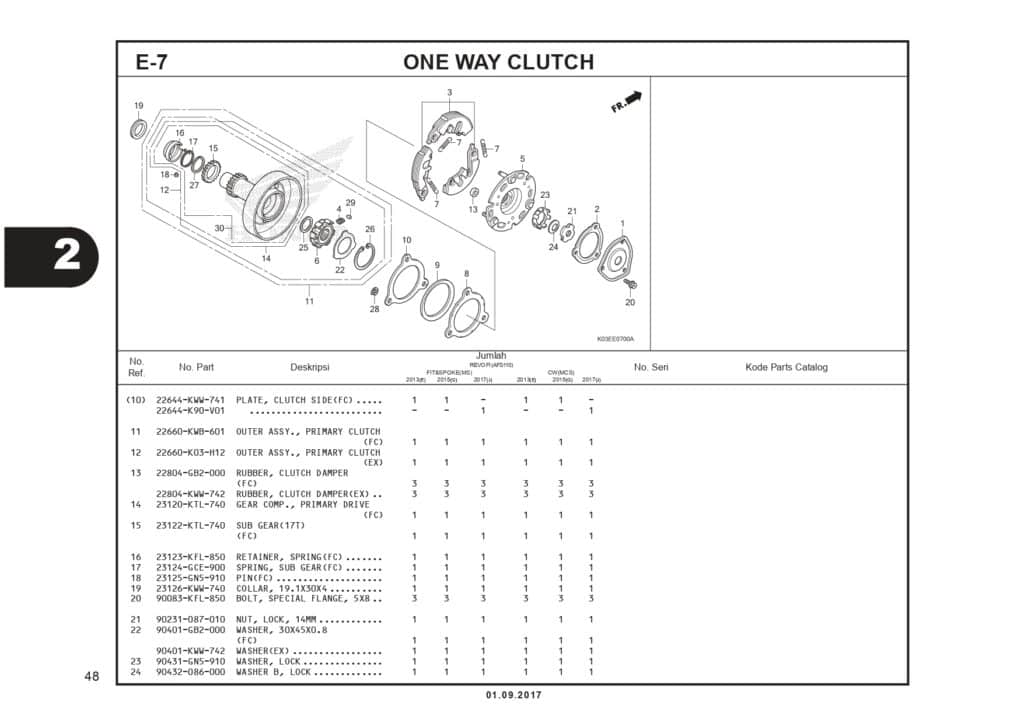

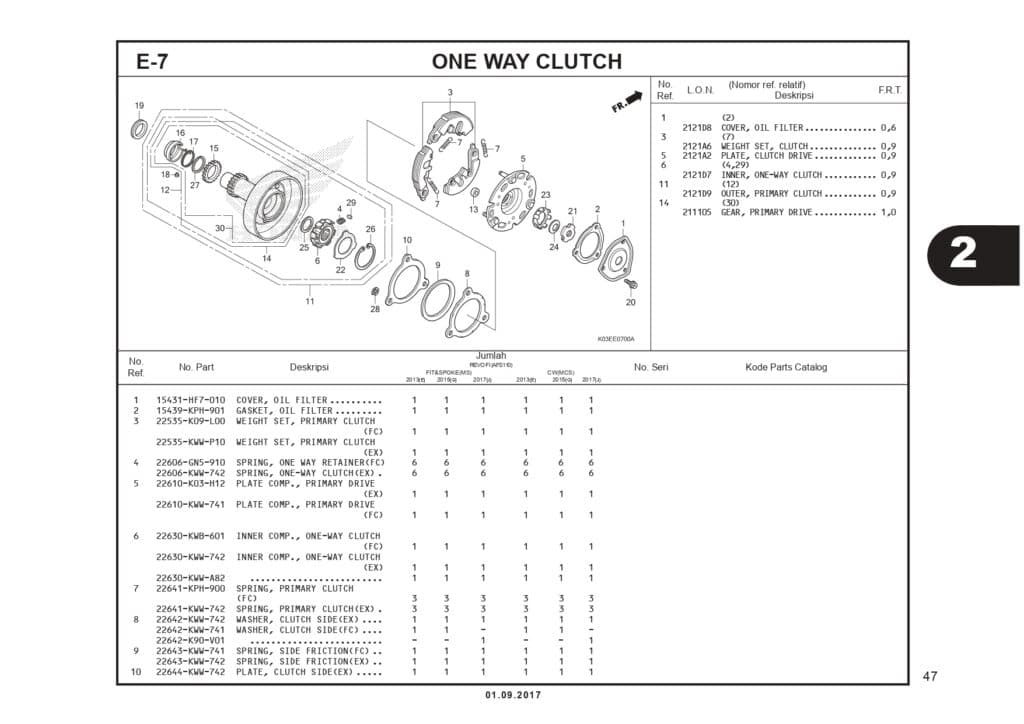

E7 – One Way Clutch – Katalog Honda Revo FI K03

#

Gambar

Nama Part

Harga

Order

1

Cover Oil Filter
15431HF7010

2

Gasket Oil Filter
15439KPH900stok habis

Rp 5,000

stok habis

3

Weight Set Primary Clutch
22535KWWP00stok habis

Rp 118,000

stok habis

3

Weight Set Primary Clutch
22535KWWP10

4

pring One Way Clutch
22606GN5911

4

pring One Way Retainer
22606KWW742

5

Plate Comp Primary Drive
22610K03H12

5

Plate Comp Primary Drive
22610KWW741

6

Inner Comp One Way Clutch
22630KWB601

6

Inner Comp One Way Clutch
22630KWW742

6

Inner Comp One Way Clutch
22630KWWA82

7

Spring Primary Clutch
22641KPH901

7

Spring Primary Clutch
22641KWW742

8

Washer Clutch Side
22642KWW741

8

Washer Clutch Side
22642KWW742

9

Spring Sett Friction
22643KWW741

9

Spring Sett Friction
22643KWW742

10

Plate Clutch Side
22644KWW741

10

Plate Clutch Side
22644KWW742

11

Outer Assy Primary Clutch
22660KWB601stok 5

Rp 366,000

Tambah

Barang ini telah ditambahkan ke keranjang anda.

12

Outer Assy Primary Clutch
22660K03H12stok habis

Rp 237,000

stok habis

13

Rubber Clutcht Damper
22804GB2880stok 51

Rp 3,500

Tambah

Barang ini telah ditambahkan ke keranjang anda.

13

Rubber Clutcht Damper
22804KWW742

14

Gear Comp Primary Drive
23120KTL740stok 2

Rp 283,500

Tambah

Barang ini telah ditambahkan ke keranjang anda.

15

Gear Sub
23122KTL740

16

Retainer Spring
23123KFL851

17

Spring Sub Gear
23124GCE901

18

Pin
23125GN5910

19

Collar 19.1X30X4
23126KWW740

20

Bolt Flange Special 5X8
9008AKFL850

21

Nut Lock 14MM
90231087010

22

Washer 30X45X0,8
90401GB2000

22

Washer
90401KWW742

23

Washer Lock
90431GN5910

24

Washer Lock
90432086000

25

Washer 17X23X1.5
90433KWB601

25

Washer 17X23X1.5
90433KWW742

26

Circlip In 45MM
90455GB2000

26

Circlip In 45MM
90455KWW742

27

Set Ring 23MM
90603P0X000

28

Circlip 7MM
90605166720stok 2

Rp 11,500

Tambah

Barang ini telah ditambahkan ke keranjang anda.

28

Circlip 7MM
90605KWW742

29

Roller 5X8
91101GB2001

29

Roller 5X8
91104K03H12

30

Gear Comp Primary Drive
23120K03H12

Berapa Harga Suku Cadang Di Katalog Ini ?

Anda bisa mencatat kode suku cadang yang anda inginkan diatas lalu cari harganya di halaman harga suku cadang motor Honda. Harga tertera disana adalah harga resmi suku cadang motor Honda untuk Indonesia.
