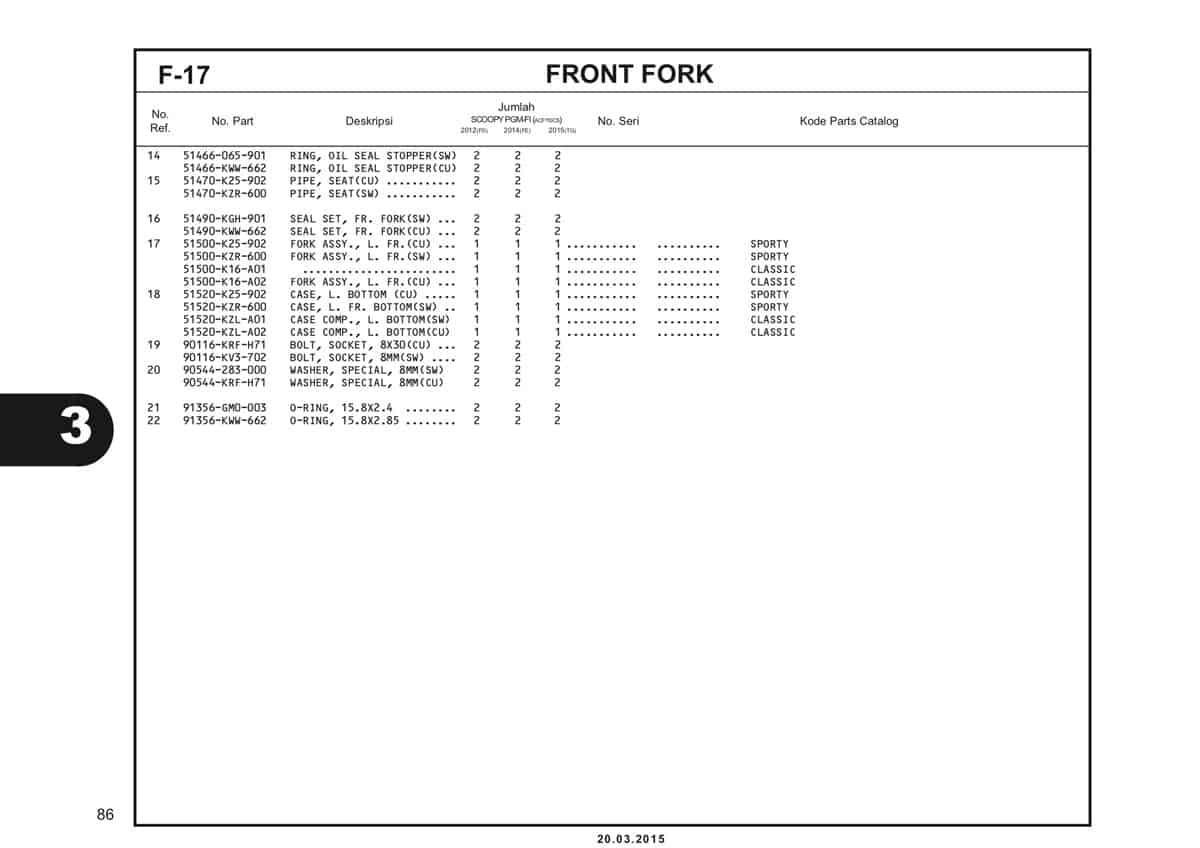

F17 – Front Fork – Katalog Honda Scoopy eSP K16
#
Gambar
Nama Part
Harga
Order
1
Fork Assy R FR
51400K16A01
51400K16A01
1
Fork Assy R FR
51400K16A02
51400K16A02
2
Spring FR Fork
51401K25902
51401K25902
3
Pipe Comp FR Fork
51410KZL842
51410KZL842
3
Rp 141,000
4
Spring Rebound
51412KWW662
51412KWW662
5
Ring Back Up
51413KWW662
51413KWW662
6
Bush Guide
51414KWW662
51414KWW662
7
Case R Bottom
51420K25902
51420K25902
7
Case R FR Bottom
51420KZR600
51420KZR600
7
Case Comp R FR Bottom
51420KZLA01
51420KZLA01
7
Case Comp R FR Bottom
51420KZLA01
51420KZLA01
8
Seal Dust
51425KWW662
51425KWW662
9
Piece Oil Lock
51432KZL842
51432KZL842
10
Ring Piston
51437KWW662
51437KWW662
12
Bolt FR Fork
51454KWW662
51454KWW662
14
Ring Oil Seal Stopper
51466KWW662
51466KWW662
15
Pipe Seat
51470K25902
51470K25902
15
Pipe Seat
51470KZR600
51470KZR600
16
Seal Set FR Fork
51490KWW662
51490KWW662
17
Fork Assy L FR
51500K16A01
51500K16A01
17
Fork Assy L FR
51500K16A02
51500K16A02
18
Case L FR Bottom
51520K25902
51520K25902
18
Case L FR Bottom
51520KZR600
51520KZR600
18
Case Comp L FR Bottom
51520KZLA01
51520KZLA01
19
Bolt Socket 8X30
90116KRFH71
90116KRFH71
20
Washer Special 8MM
90544KRFH71
90544KRFH71
22
O-Ring 15.8X2.85
91356KWW662
91356KWW662
Berapa Harga Suku Cadang Di Katalog Ini ?
Anda bisa mencatat kode suku cadang yang anda inginkan diatas lalu cari harganya di halaman harga suku cadang motor Honda. Harga tertera disana adalah harga resmi suku cadang motor Honda untuk Indonesia.
