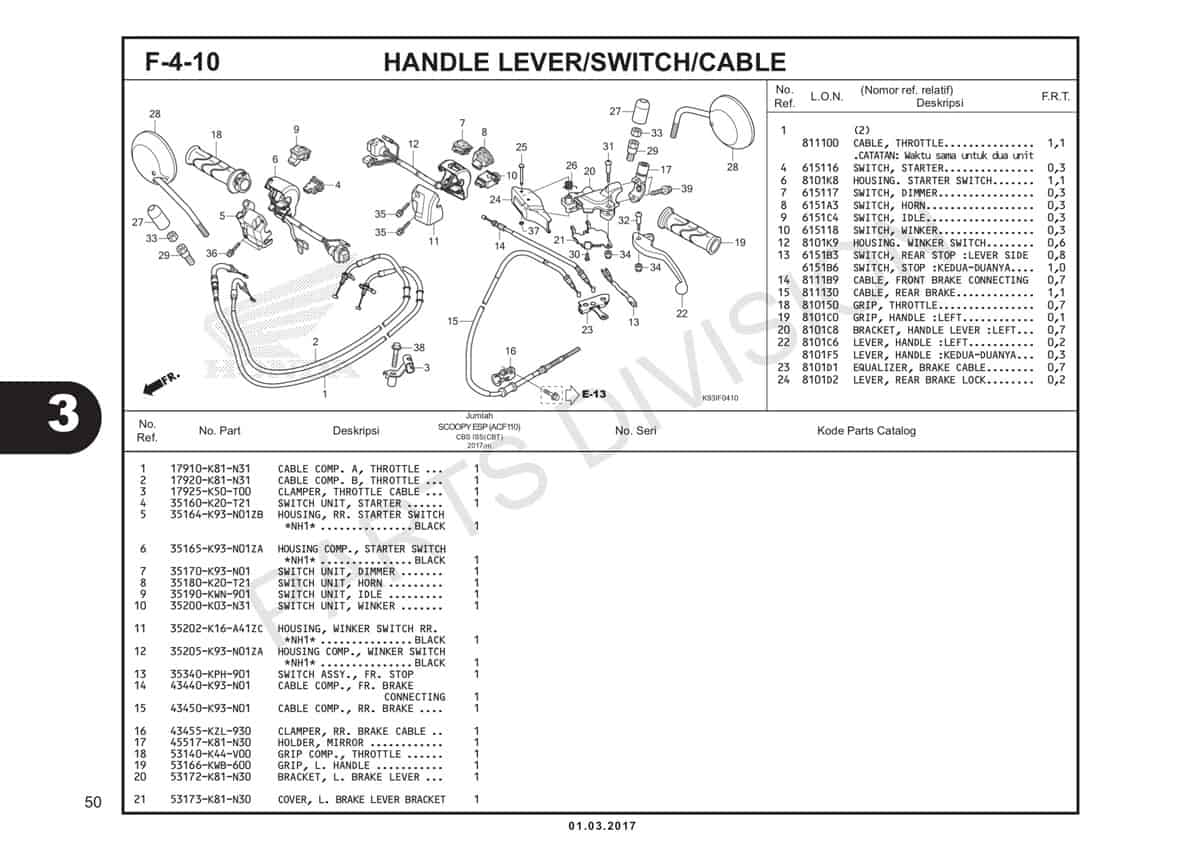

F4-10 – Handle Lever / Switch / Cable- Katalog Honda Scoopy eSP K93
#
Gambar
Nama Part
Harga
Order
1
Cable Comp A,Throt
17910K81N31
17910K81N31
2
Cable Comp B,Throt
17920K81N31
17920K81N31
3
Clamper Throt Cable
17925K50T00
17925K50T00
4
Rp 15,000
5
Housing RR Start
35164K93N01ZB
35164K93N01ZB
6
Housing Comp Starter
35165K93N01ZA
35165K93N01ZA
8
Rp 20,000
11
Housing RR Winker
35202K16A41ZC
35202K16A41ZC
12
Housing Comp.,Winker Switch
35205K93N01ZA
35205K93N01ZA
13
Rp 24,000
14
Cable Comp FR Brake
43440K93N01
43440K93N01
15
Cable Comp RR Brake
43450K93N01
43450K93N01
16
Clamper RR Brake Cable
43455KZL930
43455KZL930
18
Rp 10,000
20
Rp 47,000
21
Rp 25,000
22
Rp 42,000
23
Equalizer Comp
53184K81N30
53184K81N30
25
Rp 30,000
26
Rp 5,000
27
Cap Lock Nut
88119KWW640
88119KWW640
28
Rp 63,000
28
Rp 56,000
28
Rp 50,000
28
Rp 54,000
28
Rp 50,000
28
Rp 60,000
28
Rp 56,000
28
Mirror Comp (VA RD)
88211K93N00ZJ
88211K93N00ZJ
29
Bolt ADPT 10MM
90101KWW640
90101KWW640
31
Rp 3,500
32
Rp 5,000
33
Nut Hex 10MM
90301KWW640
90301KWW640
35
Screw Washer 5X20
938920502000
938920502000
36
Screw Washer 5X25
938920502500
938920502500
38
Bolt Flange 6X30
957010603000
957010603000
Berapa Harga Suku Cadang Di Katalog Ini ?
Anda bisa mencatat kode suku cadang yang anda inginkan diatas lalu cari harganya di halaman harga suku cadang motor Honda. Harga tertera disana adalah harga resmi suku cadang motor Honda untuk Indonesia.
