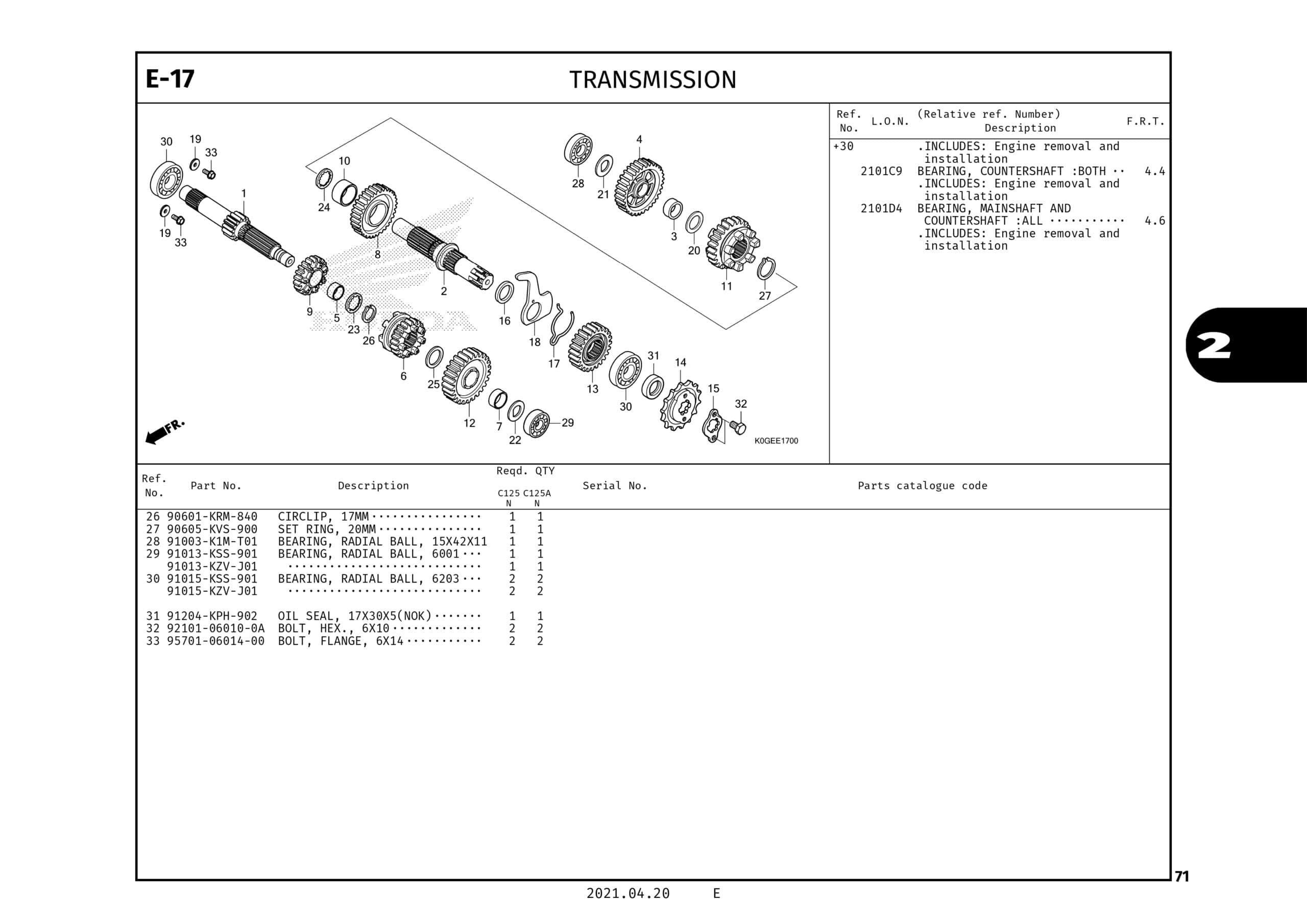

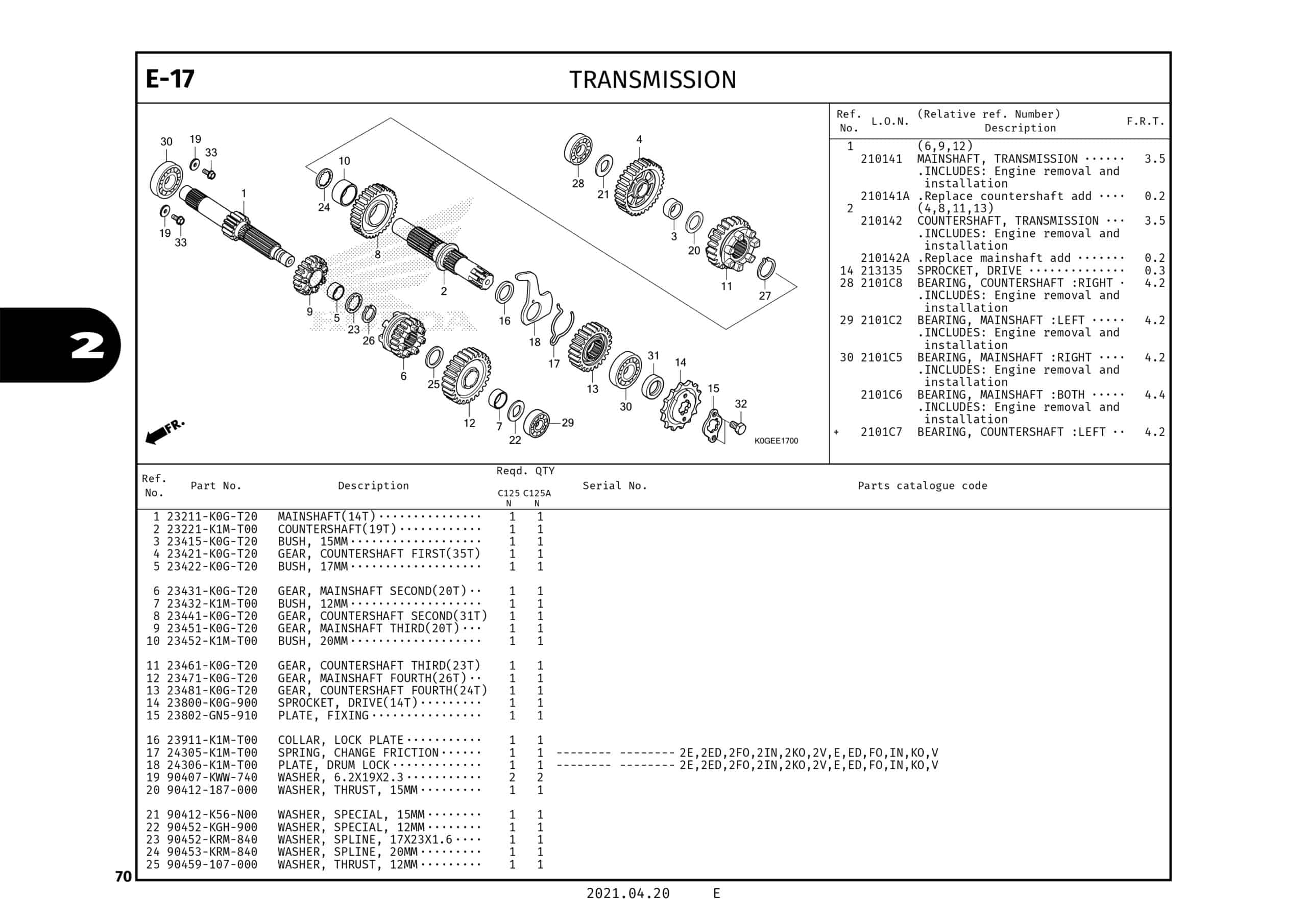

E-17 Transmission – Katalog Honda Super Cub 125
#
Gambar
Nama Part
Harga
Order
1
SHAFT MAIN 14T
23211K0GT20
23211K0GT20
2
SHAFT COUNTER
23221K1MT00
23221K1MT00
3
BUSH,15MM
23415K0GT20
23415K0GT20
4
GEAR C-1 35T
23421K0GT20
23421K0GT20
5
BUSH 17MM
23422K0GT20
23422K0GT20
6
GEAR M-2 20T
23431K0GT20
23431K0GT20
7
BUSH 12MM
23432K1MT00
23432K1MT00
8
GEAR C-2 31T
23441K0GT20
23441K0GT20
9
GEAR M-3 20T
23451K0GT20
23451K0GT20
10
BUSH 20MM
23452K1MT00
23452K1MT00
11
GEAR C-3 23T
23461K0GT20
23461K0GT20
12
GEAR M-4 26T
23471K0GT20
23471K0GT20
13
GEAR C-4 24T
23481K0GT20
23481K0GT20
14
SPROCKET DRIVE 14
23800K0G900
23800K0G900
16
COLLAR LOCK PLATE
23911K1MT00
23911K1MT00
17
SPG CHANGE FRICTION
24305K1MT00
24305K1MT00
18
PLATE DRUM LOCK
24306K1MT00
24306K1MT00
20
Rp 2,000
23
Rp 5,000
24
WASHER SPLINE 20MM
90453KRM840
90453KRM840
25
WASHER,THRUST
90459107000
90459107000
28
BRG BALL RADIAL15
91003K1MT01
91003K1MT01
29
BRG BALL RADIAL 6201
91013KSS901
91013KSS901
29
BRG BALL RADIAL 6
91013KZVJ01
91013KZVJ01
30
BRG BALL RADIAL 6201
91015KSS901
91015KSS901
30
BRG BALL RADIAL 6
91015KZVJ01
91015KZVJ01
Berapa Harga Suku Cadang Di Katalog Ini ?
Anda bisa mencatat kode suku cadang yang anda inginkan diatas lalu cari harganya di halaman harga suku cadang motor Honda. Harga tertera disana adalah harga resmi suku cadang motor Honda untuk Indonesia.
